Tableau Architecture: Components,Clients,How it works?

Tableau is one of the essential tools for Big Data professionals. It helps you in showing your data findings through detailed visualizations. Tableau is divided into many components; that’s why learning about Tableau architecture is essential for any data science aspirant. It makes data analytics easy and helps you perform a variety of tasks, including accessing databases, collaborate on projects, generate reports, and so on.

Download & Installation

Before we delve into the intricacies of Tableau architecture, let’s briefly touch upon the download and installation process. To begin, visit the official Tableau website and download the appropriate version of Tableau Server for your operating system. Follow the installation wizard instructions to complete the setup.

Sources for Data

Before you use Tableau for data visualization, you’ll need some data to work with. For that purpose, you’ll have to add a source of data to the Tableau architecture. The data source is the first component of this architecture. You can use a variety of sources for adding data to your server. These options include MySQL, Salesforce, Oracle, Excel files, and many others.

The best thing about Tableau is it can connect with multiple sources at once. It blends the data it receives from those sources to give you accurate results. You can combine various types of sources at once as well. This means you have the option to connect an Excel file along with a web application and extract data from them together.

Data Connection

You’ll need a data connector for transferring data from the sources to the server. Tableau uses an OBDC/SQL connector for this task. You can use this connection with any database through the database’s native connector.

Tableau provides you with two options for storing this transferred data. These options are:

  1. Real-time Data
  2. Extracted Data

Both of them have their specific features. Let’s discuss them in brief:

Real-time Data:

You can transfer data directly from an external source in this method. Tableau sends SQL statements and multi-dimensional expressions for transferring data. You wouldn’t have to import the data for using it. It’s useful when you need to use a data source that gets real-time updates.

You can use this method when you are using Tableau as a data visualization tool for a live data source.

Extracted Data:

Apart from relying on a live data source, you can retrieve data from a particular source as well. Tableau enables you to create a local copy of the data as an extract file. Tableau’s data extraction is capable of extracting millions of records from a data source. The straightforward interface ensures that data extraction doesn’t remain complicated for you.

You can store the extracted data in the Data Engine of Tableau. It saves the data in ROM, RAM and as cache memory for better accessibility. You also have the option of extracting specific records from a large dataset by using filters. This way, you can save many resources and complete the process faster.

Both of these features have their advantages. While real-time data lets you work with live data without facing any interruptions, extracted data gives you the option to use Tableau for visualization offline. You don’t have to be connected with a data source for using Tableau if you’re using extracted data.

Tableau Server

Tableau Server is a vital component of Tableau. Its multiple components help in managing various tasks. It stores data in the repository, keeps the user’s data secure, and performs many similar essential tasks.

Components of Tableau Server

Data Engine

Data Engine optimizes the speed of analytical processes for better efficiency. It creates, refreshes or queries extracts. It can also help you with cross-database joins when you use data sources having several connections. Multiple other components (such as VizQL Server and Data Server) use the local instance of this component for performing cross-database joins. Apart from that, they use the Data Engine to produce shadow extracts as well.

Data Engine mainly works when you’re working with TDEs (Tableau data extract). It can store many TDEs and run them on various servers. It can also handle multiple requests at the same time for higher efficiency. It can save the extracted data from TDE if you need so.

Application Server

The application server provides authentication and permissions. It handles login requests, user permissions, and domain authentication. It keeps your processes secure by recording each session in the Tableau server. It also handles processes related to the VizQL server that isn’t concerned with data visualization.

Explore our Popular Data Science Certifications

Gateway

The gateway enables Tableau clients to communicate with the server through HTTP (or https). You can run a single gateway process on every node of the cluster of your server environment if needed. If your server is required to use SSL, make sure the certificate is at the same location in every computer connected to the cluster.

The Tableau server receives many requests, and it has to direct them to the right server. The gateway handles multiple processes related to the server. It sends files to clients, rewrites URLs, etc. When a client sends a request, it goes to the load balancer. The gateway distributes these requests from the load balancer to the appropriate components. The gateway can also act as a load balancer if the system lacks one.

upGrad’s Exclusive Data Science Webinar for you –

ODE Thought Leadership Presentation



Backgrounder

As the name suggests, backgrounder performs tasks in the background. It handles the schedules of the server and data engine for better operation. It can manage multiple processes at the same time. Like the data engine, backgrounder consumes a lot of processing power on your server. Apart from TDEs, it also helps in rebuilding search indexes, checking available disk space, and synchronizing directory groups.

Top Data Science Skills to Learn

VizQL Server

VizQL server converts data into visualizations, so it’s undoubtedly an essential component of Tableau server architecture. When a client requests for a visualization, it is sent to VizQL, which converts it into an SQL statement. Then, VizQL sends it to the data sources from which the request is sent back to VizQL. After that, it adds some calculates to it and sends the final product to the user.

VizQL server creates caches of the visualizations for reducing load times. If multiple users have permission to the visualization, they will also receive the cache of the same.

Repository

This component handles server metadata of assignments, users, projects, and permissions. Whenever a part requires any metadata, the repository sends the same accordingly. It also stores the visualizations in the form of flat files. It can also store performance data for future audits. It works with the active directory to send information to the application server for login verification.

Data Server

It manages data from external sources. The data server handles storage, data connection, security, driver requirements, and metadata management. It also stores details related to the stored data such as parameters, calculations, etc. The data server enables you to centralize metadata management. It also handles requests for preventing any users from accessing a data source.

License and Search

The license component, as the name suggests, handles the licensing tasks of the server. On the other hand, the search section lets you search the index in the repository for your requirements. While these components might seem simple, they are essential for the proper functioning of the server.

You must’ve noticed how vast the Tableau architecture is. Now that you know about Tableau server, we can take a look at the next section, Tableau clients.

Tableau Clients (Desktop, Mobile, and Browser)

The mobile devices, on-cloud, web apps, and on-premise interfaces you use for accessing Tableau are called clients. These end-users interact with the server for accessing visualizations or data. You’d send the requests for accessing the data through the client, who’d then display the visualizations accordingly.

Web browsers such as Safari, Google Chrome, and Mozilla Firefox can let you edit the contents of your visualization through the dashboards of Tableau Online. You can also use Tableau Desktop for this purpose. It enables you to create and manage the dashboard in the server. Tableau also lets you access and use the server through mobile applications.

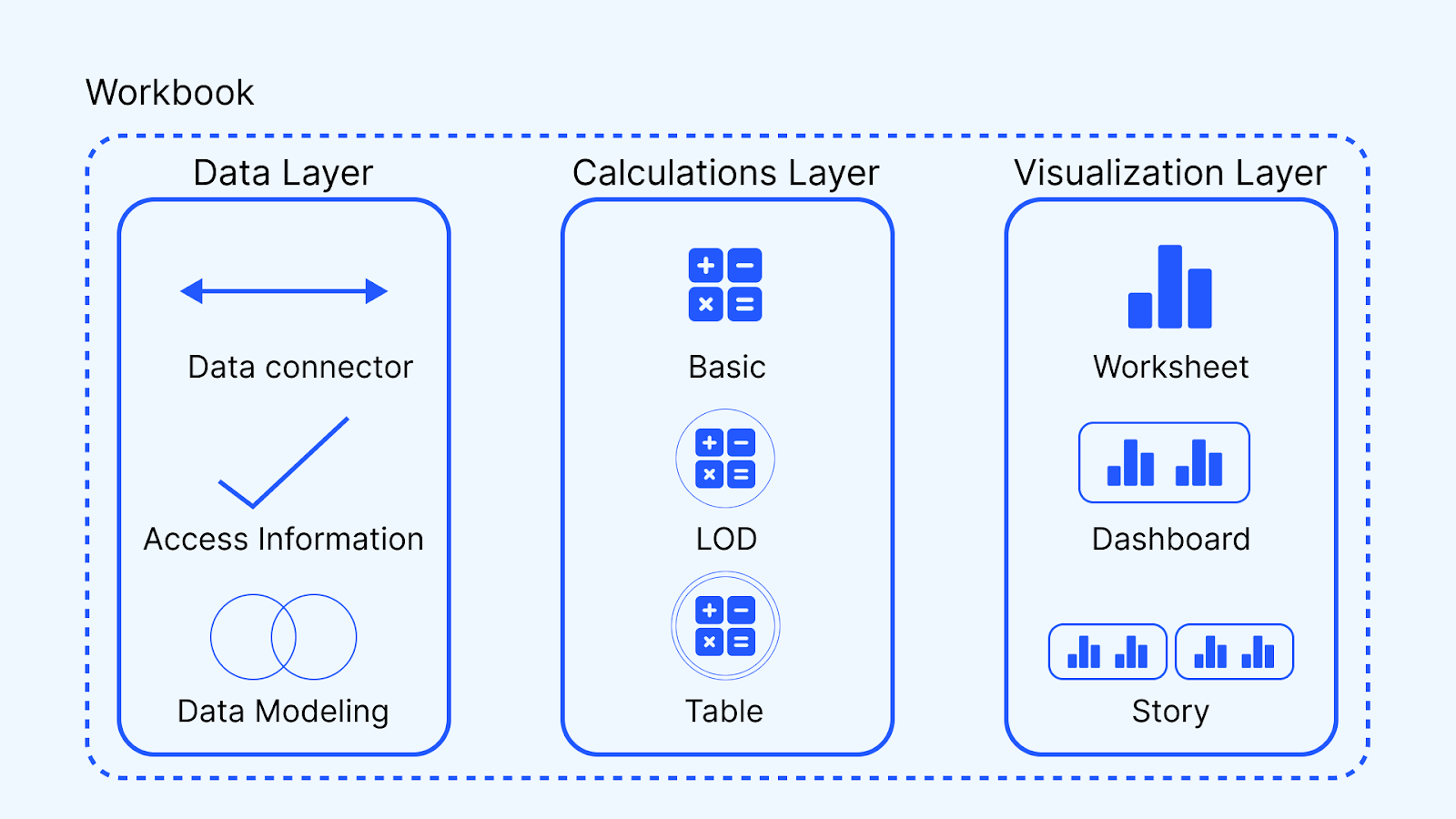

Tableau desktop helps you in creating the dashboard, workbooks, and visualizations by using the data you received from sources. You can also publish the results into the server for future use. This tool also lets you create custom designs for your dashboards according to tablets, phones, and PCs.

Read our popular Data Science Articles

How Tableau Server Architecture Works

Data Connectors

Tableau Server supports various data connectors enabling users to connect with different data sources. These connectors ensure smooth integration with databases, spreadsheets, cloud services, and more. Tableau Server can access and retrieve data from a wide range of sources by utilizing data connectors.

The various components of Tableau server architecture work together for giving you the required results. The server facilitates communication between data connectors and visualizers. After discussing the specific functions of different components, let’s see how they all work together.

  • First, the data sources send the data through connectors, where it goes through the data engine and repository. The data engine processes the received data and assigns its values accordingly (such as data type and dimension).
  • The SQL connector, a section of the data engine, generates an SQL query for processing the user requests.
  • After those components comes the data server. It handles the operation of the data connectors to make sure they work correctly. Then the data is sent to the VizQL server and then to the Application server. While the application server determines which type of request it is receiving, the VizQL server creates the required visualizations.
  • In the final stage, the gateway handles the queries and user requests. It acts as a primary server if required, sends requests to secondary servers.

Earn data science certification from the World’s top Universities. Join our Executive PG Programs, Advanced Certificate Programs, or Masters Programs to fast-track your career.

Tableau Security

Tableau Security is an important aspect of the Tableau Server architecture. It ensures that data and visualizations are accessed only by authorized users. This covers user authentication, role-based access control, permissions management, and data encryption.  Tableau Architects mostly deal with this aspect. Typically, the job of a Tableau Architect is to design the set-up as well as the security of applications and other tools made using Tableau software.

Tableau Deployment Options

Tableau offers different deployment options to suit various organizational needs. These options include on-premises deployment, cloud deployment, and hybrid deployment. Exploring the different deployment options helps businesses determine the most suitable approach for their Tableau implementation.

Tableau Scalability and Performance

Scalability and performance are critical factors to consider when implementing Tableau Server. This topic discusses strategies for optimizing performance, load balancing, and scaling Tableau Server to handle increasing data volumes and user loads.

Tableau Mobile

Tableau Mobile is a mobile application that allows users to access and interact with Tableau visualizations on their smartphones and tablets. This topic explores the features and capabilities of Tableau Mobile and how it enhances the accessibility and usability of Tableau Server.

Tableau Governance

Tableau Governance focuses on establishing policies, processes, and standards to ensure the effective management and governance of data and visualizations within Tableau Server. This covers data cataloging, lineage, version control, and compliance.

Tableau Data Extracts

Tableau Data Extracts are a powerful feature that allows users to extract and optimize data from various sources for faster performance and offline access. This topic discusses the benefits of using data extracts, creating and refreshing them, and their impact on performance.

Tableau Server Administration

Tableau Server Administration involves managing and maintaining the Tableau Server environment. This topic covers user and group management tasks, server configuration, backup and restore procedures, monitoring server performance, and troubleshooting common issues.

Tableau Collaboration and Sharing

Tableau Server provides robust collaboration and sharing capabilities, enabling users to collaborate and share insights. This topic explores features like commenting, subscriptions, alerts, content publishing, and user-driven collaboration, which enhance teamwork and knowledge sharing within the Tableau environment.

Tableau Extensions

Tableau Extensions are add-ons that extend the functionality of Tableau by integrating with external applications and services. This topic discusses extensions’ benefits and provides examples of popular extensions for data connectivity, custom visualizations, and advanced analytics.

Tableau APIs and Integration

Tableau offers a range of APIs and integration options that allow developers to integrate Tableau with other systems and create custom solutions. This topic explores the Tableau APIs, including the REST API and JavaScript API, and highlights use cases for integrating third-party applications and embedding Tableau visualizations.

Tableau Server Upgrades and Best Practices

Periodic Tableau Server upgrades are essential to take advantage of new features, performance improvements, and security patches. This topic covers best practices for planning and executing server upgrades, ensuring minimal disruption, and maximizing the benefits of the latest Tableau version.

Want to Learn More about Tableau?

Tableau is a powerhouse when it comes to data analytics. In this guide, we learned about Tableau architecture, its server and the components of the same. You must’ve seen how its various parts work together to give you a powerful data visualization tool. Many organizations use Tableau.

The support for this tool is also highly impressive. They release regular updates, so you don’t face issues with bugs or any other technical causes. You can learn more about Tableau and data analytics tools in our blog.

If you are curious to learn about Tableau, check out IIIT-B & upGrad’s PG Diploma in Data Science which is created for working professionals and offers 10+ case studies & projects, practical hands-on workshops, mentorship with industry experts, 1-on-1 with industry mentors, 400+ hours of learning and job assistance with top firms.


Profile

Rohit Sharma

Blog Author
Rohit Sharma is the Program Director for the UpGrad-IIIT Bangalore, PG Diploma Data Analytics Program.

Frequently Asked Questions (FAQs)

1In Tableau Server, how do you clear the cache?

The service must be terminated in order to delete the cache. To stop Tableau Server, use the 'tabadmin stop' command. You might wish to perform a 'tabadmin status' command after the service has been stopped to make sure it is indeed stopped. After that, you may use the clean cache command.

2In Tableau, how do you hide unneeded columns?

Concealing columns can be useful in instances when a column is necessary for row level specificity but is not desired to be shown, or to make your table more manageable/interpretable by hiding the columns that aren't needed. To hide a field, simply right-click on it and select 'Hide.' Note that you can easily conceal all unnecessary fields by using the drop-down menu in the upper right corner of the data window and selecting 'Hide All Unused Fields.'

3How is Tableau Public different from Tableau Reader?

Tableau Public is a free version of the visualization program Tableau. It enables you to use most of the software's features. You can link to CSV, Text, and Excel documents to build visualizations. The most significant distinction is that Tableau Public does not enable you to store worksheets locally. You may read Tableau file formats using the Tableau Reader. If you email a file to share your workbook, the recipient will require a Tableau reader to access the file.
