Introduction to Tuple in DBMS
We must first know what DBMS is to define a tuple in DBMS. A relational database management system (DBMS) uses tuples, sometimes called records or rows, as the fundamental data unit. A tuple in a database denotes a single illustration of a relation or table. Each tuple has a collection of values or attributes mapped to the relation’s fields or columns. Primarily, tuples are of two types: physical tuples and logical tuples.
So what does “tuple” in RDBMS indicates? E.F. Codd, the relational DBMS (RDBMS) creator, described relationships as a group of distinct tuples. The relational model employs specific keys to arrange data into at least one table of rows and columns. Tables can be used to represent these rows.
Read on to learn more about tuple in RDBMS and their real-world uses. Improve your understanding of DBMS further through upGrad’s Full Stack Software Development Bootcamp and get a certificate from Golden Gate University, California, upon completion.
Characteristics of a Tuple
A tuple in a database management system has essential properties describing its nature and usefulness.
- Structure: A tuple is an ordered group of characteristics or fields representing a table record or row. Each attribute contains a particular piece of information, and the tuple brings all these elements together to create a complete record.
- Uniqueness: A tuple in DBMS often contains unique attributes within a database, meaning no two tuples may have the same attribute values. This individuality enables effective record identification and retrieval.
- Relation to tables: Tuples and tables in a DBMS have a close relationship. Each tuple, made up of several tables, represents a different row in the table. Tuples specify the organisation and substance of the data kept in a table.
- Modification: Changes to the underlying data can be reflected in a DBMS by updating, deleting, or changing the tuples. This adaptability enables the alteration and upkeep of the database, assuring its accuracy and currentness.
- Retrieval: Tuples may be retrieved from a DBMS using queries and search criteria. Specific tuples or collections of tuples can be fetched from the database by indicating particular criteria, such as the value of attributes or logical conditions.
- Homogeneity: Tuples within a table are usually homogeneous, meaning they have the same structure and attributes. They adhere to the table’s schema, defining the attributes, data types, and associated constraints.
Check out our free technology courses to get an edge over the competition.
Anatomy of a Tuple
- A tuple’s component fields or data items are known as its attributes. They reflect the traits or qualities connected to what the tuple is supposed to represent. As a demonstration, the characteristics of a tuple describing a customer may comprise the customer ID, name, email, and phone number.
- The information kept in a tuple’s attributes is known as its “attribute values.” These values convey the exact details connected to the entity the tuple represents.
- A relation schema provides information on the relation’s structure, including its name (or table), characteristics, and their names and types.
- A characteristic known as a relation key may be used to specifically identify a specific tuple (row) in a relation (table).
- Every relationship in a relational database model must abide by the Relational Integrity Constraints to be accepted as legitimate.
Let’s examine the anatomy of a tuple with an example:
Consider a hypothetical table called “Citizens” with the following attributes:
- CitizenID (integer)
- FirstName (string)
- LastName (string)
- Age (integer)
- MaritalStatus (string)
Example Tuple 1:
CitizenID: 231068517890
FirstName: Salman
LastName: Khan
Age: 55
MaritalStatus: Unmarried
In this example, the tuple represents a citizen with a CitizenID of 231068517890, a FirstName of “Salman,” a LastName of “Khan,” an Age of 55, and a MaritalStatus as “Unmarried”.
Curious about the foundational elements of database management? Learn about the types of keys in DBMS that play a crucial role in organizing, accessing, and maintaining data efficiently.
Null Values in Tuples
Null, a special value offered by SQL, is used to indicate values of attributes that are undefined or do not apply to that specific row.
A null value represents the following range of interpretations:
- Unknown value (a value that exists but is not known)
- Value not accessible (exists but is seemingly concealed)
- Not relevant (undefined concerning that row) attribute
To handle data containing null values, SQL offers specific operators and procedures. It is crucial to understand that null is not the same as zero or an empty string; it indicates the absence of a value. Here’s an example of a tuple with a null value:
Consider a table named “Zoo” with attributes like AnimalID, Name, Age, and Species. Let’s say there is a tuple representing an animal in the zoo, but the animal’s age is unknown or not provided:
AnimalID: 101
Name: Dobby
Age: NULL (null value)
Species: Giraffe
Check Out upGrad’s Software Development Courses to upskill yourself.
Tuple Operations
Here are some commonly used operations for tuple in DBMS. If you want to learn more about DBMS and upskill yourself, enrol in the Master of Science in Computer Science from LJMU.
- The tuple is populated using the INSERT command and supplied attribute values. The primary key condition is crucial for identifying the inserted tuple appropriately and uniquely.
- Utilising the SELECT command, the desired tuples are filtered and fetched by specifying criteria such as attribute values (WHERE clause), logical expressions, or relational actions (JOIN).
- The update operation changes a tuple’s attribute values. Utilising the WHERE clause to identify specific tuples, new values are assigned to the required attributes using the UPDATE command. The main key or unique identifier is essential to find the appropriate tuple for updating.
- A table’s tuples are removed via the delete action. Specific tuples are identified using the WHERE clause and the DELETE command depending on particular criteria. The primary key is necessary to identify the tuples that must be destroyed.
- An attribute subset is chosen through projection from a tuple or group of tuples. Using the SELECT command and mentioning the desired characteristics in the query creates a new tuple or tuples with the chosen attributes.
- Based on shared properties, the join operation merges tuples from several tables. The tables to be combined and the characteristics to be used for matching are specified in the SELECT command with JOIN. The foreign keys establish the associations between the tables.

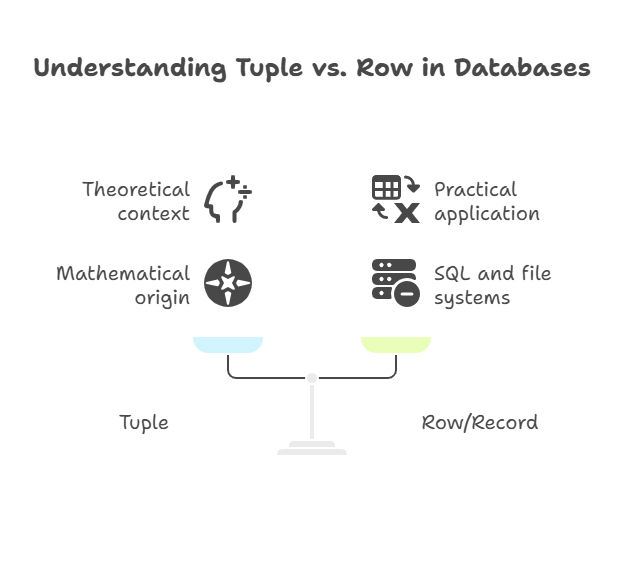

Comparison between Tuples and Records
While tuples and records have similarities and are often used interchangeably, their precise definitions and usage can vary based on the context.
| Aspect | Tuples | Records |
| Terminology | Primarily used in relational databases | Can be used in various data modelling contexts |
| Representation | Represents a single instance or row of data in a table | Refers to a collection of related data elements or fields |
| Usage | Commonly used in the context of the relational model and relational algebra | Used more generally to describe a group of data fields |
| Scope | Associated with the relational database model and DBMS | Not limited to a specific database model or system |
| Context | Relational databases and relational algebra | Data modelling and database systems in general |
| Interchangeability | Often used interchangeably with “record” | Can be used interchangeably with “tuple” in specific contexts |
| Usage flexibility | Strictly defined within the relational model | Can have varying definitions and interpretations depending on the data modelling approach |
Explore our Popular Software Engineering Courses
Applications of Tuples in DBMS
Some applications of tuples in DBMS:
- Data storage: Tuples are the primary data storage unit. Each tuple represents one record or data object from a table. DBMS ensures organised information storage and retrieval by grouping data into tuples.
- Data modification: A DBMS’s use of tuples makes it possible to modify data. While tuples are deleted from the database using the DELETE command, attribute values within tuples are updated using the UPDATE statement. It allows data editing, upkeep, and upgrading.
- Data integrity: Tuples, together with primary keys, constraints, and other factors, help DBMSs maintain data integrity. Each tuple in a table is uniquely identified by its primary key, eliminating duplicate or incorrect data. Foreign key constraints, for example, enforce relationships between tuples in several databases, ensuring referential information’s integrity.
- Relationship management: In conjunction with foreign keys, tuples establish relationships between tables in a relational database. These relationships enable joining and querying data from multiple tables based on shared attributes.
- Concurrency control: Tuples manage concurrent access and transactions within a DBMS. Locks or timestamps are often associated with tuples to ensure data consistency and isolation during simultaneous operations.
- Query optimisation: Tuples are used to optimise database queries. The query optimiser analyses query plans and determines the most efficient way to retrieve tuples, considering factors such as indexing, join strategies, and data access methods.
Explore Our Software Development Free Courses
Conclusion
Tuples are essential to operating a relational database as they allow one to store, retrieve, and effectively manipulate data. Combining relevant qualities into a single tuple guarantees data consistency and integrity while facilitating quick access to information.
