Value Stream Mapping: Steps, Examples, Principles and Metrics

Key Highlights

• Value stream mapping helps visualise how work flows through a process, revealing delays, waste, bottlenecks, and opportunities for improvement.
• It connects customer value with process activities, showing where time is spent on processing, waiting, approvals, movement, and rework.
• Key elements include current and future state maps, process metrics, value stream mapping steps, components, principles, and waste analysis.
• In this blog, you'll learn the concepts, steps, examples, metrics, and practical methods used to analyse and improve value streams.

Build practical business and leadership skills with upGrad’s MBA Certification Courses Online and learn how to apply structured approaches to process improvement, decision-making, and business management.

What is value stream mapping?

Value stream mapping is a Lean management tool that visually illustrates how work flows from a first inquiry to the final customer result.

It includes activities such as processing, approvals, information flow, inventory, waiting, inspections and delivery. This helps teams understand where value is being delivered and where delays, waste or unnecessary effort are slowing the process down.

An order, for example, may take five days to reach a customer but involve only three hours of actual processing. Value stream mapping shows the remaining waiting time so teams can focus on the most important problems.

Why is value stream mapping used?

The technique is commonly used to understand process flow, expose waste, reduce delays, and create a shared view of how work moves through an organisation.

It can help identify:

• Waiting time
• Bottlenecks
• Excess inventory
• Rework
• Unnecessary handoffs
• Information delays
• Duplicate activities
• Non-value-added work

The method originated in Lean manufacturing, but has since been applied to software development, healthcare, logistics, procurement and service operations.

The main thing is that the map is aligned to the value stream. It does more than just record individual tasks.

Also Read: What is Customer Relationship Management? A Complete Guide

What are the principles of value stream mapping?

The principles of value stream mapping are about understanding customer needs, improving flow of work and eliminating non-value adding activities. The goal is not to create a complex diagram. It is to understand the process and improve the flow of work thru it.

1. Focus on Customer Value

Figure out what the customer really needs. Each activity should be judged on whether it contributes toward that outcome or is required for business or regulatory reasons.

2. Map the Complete Flow

Trace the work from beginning to end. Don’t look at one department at a time, because delays between teams can have a greater impact than delays within a single activity.

3. Observe the Actual Process

Don't rely only on process documents. Observe how work happens in practice, including workarounds, redirected requests, delayed approvals, and duplicate data entry.

4. Identify Waste

Identify activities that consume time or resources but do not add value to the customer experience. Some non-value-added activities are necessary, such as quality checks or regulatory approvals.

5. Improve the Overall Flow

Making one activity faster doesn't always improve the entire process. If the next stage has limited capacity, faster output can simply create a larger queue.

6. Match Flow With Customer Demand

Match customer demand to process capacity. Know if the workflow can deliver at the required rate. This can help to find capacity gaps and uneven workloads.

7. Support Continuous Improvement

A value stream map reflects the process at a specific point in time. Review it when demand, technology, staffing, or workflows change so improvements remain relevant.

Read: Top 10 Online Product Management Courses to Level Up Your Skills in 2026

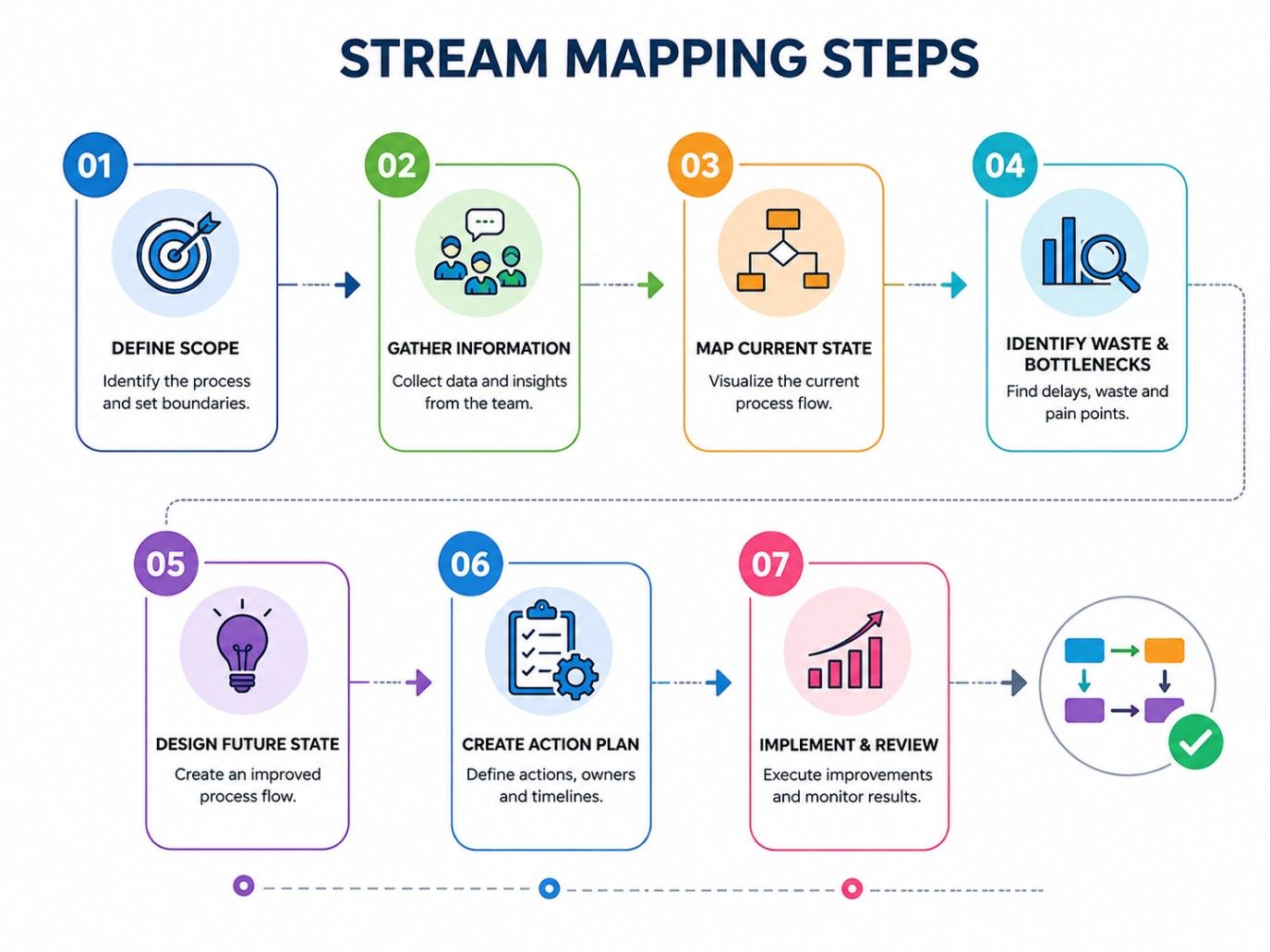

What are the value stream mapping steps?

The value stream mapping steps should move from understanding the current situation to creating a realistic improvement plan. Don't jump straight into redesigning the workflow.

What are the components of value stream mapping?

A value stream map brings different types of information into one view. These components help teams understand how work moves, where it waits, and what affects overall process performance.

1. Process Steps

Process boxes show the main activities that move or transform the work. Keep them focused on important stages rather than documenting every small task.

2. Material or Work Flow

This shows how materials, products, requests, documents, or unfinished work move between process stages. The exact flow depends on whether the process is physical, digital, or service-based.

3. Information Flow

Information controls when and how work moves. Orders, schedules, approvals, emails, system alerts, and customer requests can all influence the process.

4. Inventory and Work in Progress

Inventory represents materials waiting between stages. In service and knowledge-based processes, pending tickets, incomplete applications, unapproved documents, or unfinished features can represent work in progress.

5. Process Data

Process data provides measurable information about each stage. Common measures include cycle time, uptime, changeover time, quality, staffing, and capacity.

6. Timeline

The timeline separates processing time from waiting time. This helps teams see why a process with only a few hours of active work might still take several days to complete.

Together, these value stream mapping components create a clearer picture of how the process performs and where improvements may be needed.

Take your management knowledge further with MBA from LBS with IIMU Certification - upGrad and develop practical skills for better business decisions, process improvement, and leadership.

Value Stream Mapping Examples

A useful value stream mapping examples should show how work moves through a real process and where delays or waste occur. Looking at the full flow makes it easier to separate actual processing time from waiting, rework, and handoffs.

1. Manufacturing Value Stream Mapping Example

A manufacturer produces a component through machining, inspection, assembly, and packing.

The machining stage takes 30 minutes, but the component waits nearly two days before inspection. The real issue isn't machining speed. The queue between these stages is the bigger concern.

The team can then examine inspection capacity, batch sizes, scheduling, and material flow to find the cause.

Also Read: Complete Guide to Product Management Career: Skills and Opportunities for Growth

2. Software Development Value Stream Mapping Example

A software feature moves through development, testing, security review, deployment, and release.

Development takes two hours and testing takes one hour, yet the feature reaches customers only after eight days. Most of that time is spent waiting for reviews and deployment windows.

This example shows why teams should compare active processing time with total delivery time.

3. Service Value Stream Mapping Example

Consider a customer onboarding process that moves from sales to compliance and then to operations.

Missing information sends some requests back for correction. Although the actual setup takes less than an hour, customers may wait several days because of rework and repeated handoffs.

The map makes these delays visible and gives the team a clear starting point for improvement.

Read: Complete Guide to Product Management Career: Skills and Opportunities for Growth

What is the difference between a current state map and a future state map?

The current state map shows how work moves today. The future state map shows how the team wants that flow to work after improvements.

Both are necessary.

Aspect	Current State Map	Future State Map
Main question	What happens now?	What should happen?
Focus	Existing flow and waste	Improved flow
Data	Actual process data	Proposed conditions and targets
Purpose	Find problems	Guide improvements
Timing	Created first	Created after analysis

Read: Future Scope of Management: Scope, Salary, Career Opportunities

What are value stream mapping metrics?

Metrics help teams measure how efficiently work moves through a process. They show where time is spent, where work waits, and where capacity or flow problems may exist.

Metric	What it measures	Why it matters
Lead time	Total time from the start of work to completion, including waiting, approvals, and queues	Shows the overall time taken to deliver the outcome
Cycle time	Time spent actively working on a process step	Helps assess process capacity and performance
Takt time	Pace required to meet customer demand	Helps identify whether process capacity matches demand
Waiting time	Time work spends waiting before the next activity begins	Reveals delays and queues between process steps
Work in progress (WIP)	Amount of unfinished work within the process	Helps identify excessive workloads and potential bottlenecks
Value-added time	Time spent on activities that directly contribute to customer value	Shows how much of the total lead time actually creates value

Read: Importance of Management in Every Organisation – [A Complete Guide

How do you identify waste in value stream mapping?

A process can look busy while customers are still waiting. People may be working continuously, but the work itself could be sitting in queues between activities.

The traditional Lean wastes include:

• Overproduction
• Waiting
• Transportation
• Excess inventory
• Unnecessary motion
• Overprocessing
• Defects

Modern knowledge-work applications also examine partially completed work, task switching, unnecessary features, handoffs, delays, and relearning.

1. Value-added activities

These activities directly change a product or service in a way the customer needs.

For example, assembling a required product component can add value.

2. Necessary but non-value-added activities

Some activities don't directly create customer value but are required by regulations, quality controls, or current business conditions.

These shouldn't automatically be removed.

3. Non-value-added activities

These consume time or resources without improving the outcome and without being necessary. They are strong candidates for reduction or elimination.

Finding waste on the map

Start with the timeline. If processing takes four hours but the total lead time is seven days, ask where the remaining time goes.

Then examine queues, approvals, rework, handoffs, inventory, and information delays.

That's how you identify waste in value stream mapping without simply labelling every activity as waste.

Read: Product lifecycle management

Common Value Stream Mapping Mistakes

A value stream map is only useful when it reflects the real process. Small mistakes can hide delays, waste, and bottlenecks that teams need to address.

• Mapping the ideal process: Map what actually happens, not what the procedure says should happen.
• Making the scope too broad: Focus on one meaningful value stream instead of the entire organisation.
• Ignoring information flow: Include approvals, emails, schedules, and system updates that affect workflow.
• Using assumptions instead of data: Use actual process data to identify delays and bottlenecks.
• Focusing on individual departments: Assess the complete flow, including upstream and downstream activities.
• Stopping at the current state: Use the findings to create a future-state map and improvement plan.

Read: 5 Key Skills Required for Successful Management Career & How To Achieve Those Skills?

Value Stream Mapping Best Practices

A good value stream map should make problems easier to see and decisions easier to make. Keep the process focused, use real data, and connect every major finding to a practical improvement.

• Start with a clear problem: Define the customer or process issue you want to solve.
• Observe the real workflow: Map what actually happens, including delays, rework, and handoffs.
• Involve the right people: Include employees from different stages of the value stream.
• Use relevant data: Measure lead time, cycle time, waiting, quality, and work in progress without collecting unnecessary data.
• Focus on high-impact issues: Prioritise problems affecting cost, quality, delivery, lead time, or customer experience.
• Keep the map simple: Use only the details needed to understand the flow and identify problems.
• Assign improvement ownership: Give each major action a clear owner, timeline, and measurable outcome.
• Turn findings into action: A value stream map should guide process improvements, not become a document that sits unused.

Conclusion

Value stream mapping helps teams see the difference between work being performed and work actually moving toward the customer.

The strongest maps are based on observation and real data. They show current problems clearly, connect those problems to a realistic future state, and turn improvement ideas into measurable actions.

Start with one value stream. Follow the work. Find where time disappears. Then fix the part that matters most.
