Hibernate Tutorial for Beginners

Last updated:
25th Jun, 2023
Read Time
9 Mins
share image icon
In this article
Chevron in toc
View All
Hibernate Tutorial for Beginners

Open-source Hibernate is a free OOP Java framework used in web applications for mapping object-oriented domain models with relational databases.

One may use HQL and SQL to query databases and enable robust object-relational mapping. However, ORM mapping implementation in Java simplifies with Hibernate, reducing significant complexities in your application, and is beneficial for people possessing a fundamental understanding of SQL.

Hibernate Tutorial For Beginners: Why It’s The Best ORM Technology?

An ORM solution called Hibernate, which is based on Java, offers a framework for mapping application domain objects to relational database tables and vice versa.

Hibernate is useful as an ORM technology for a number of reasons, including Java classes that can be mapped to database tables and vice versa using Hibernate.

Ads of upGrad blog

In this Java hibernate tutorial section, learn why hibernate is the best ORM technology:

  • It offers tools for carrying out CRUD operations on all the main relational databases.
  • To free up time for business use cases rather than ensuring that database operations don’t result in resource leaks, Hibernate removes the entire boilerplate code associated with JDBC and handles resource management.
  • Transaction management is supported by Hibernate, which also ensures that the system contains no inconsistent data.
  • An abstraction layer between the program and the database is created when Java classes are mapped to database tables using XML, property files, or annotations.
  • With the aid of Hibernate, one can quickly see how their model classes reflect database tables via mapping joins, collections, and inheritance objects.
  • A query language (HQL) offered by Hibernate is comparable to SQL. Integration with a few other modules is another feature offered by Hibernate. For instance, Bean Validation (JSR 303)’s reference implementation is Hibernate Validator.
  • This hibernate tutorial for beginners is the right learning path because hibernate features a lower learning curve, plenty of web-based documentation, and simple access to support in forums.
  • Hibernate is simple to integrate with other Java EE frameworks. Due to its widespread use, Spring Framework already includes support for integrating hibernation with Spring applications.

Hibernate is the greatest option for your application’s object-relational mapping needs, in experts’ opinion, based on all the advantages listed above.

Check out our free courses related to software development.

Explore Our Software Development Free Courses

Architecture of Hibernate

Hibernate configuration is typically stored in the properties section or the hibernate.cfg.xml files. When searching for Java configuration, look for classes marked with the annotation @Configuration.

To start working with a Java application and a database, begin with the Session Factory. The object represents the entire mappings collection between an application’s Java Types and an SQL database.

Session Factory

Any user application may request a session object by contacting Session Factory. The Session Factory uses the configuration information included in the files to create the session object. Application and database interactions at different moments are included in a session, and a session class represents this.


Application programs may query the database for one or more stored items using the query language. Hibernate offers a variety of approaches, including NamedQuery and Criteria API, to query the databases.

First-level Cache

The cache utilised by the Hibernate Session object communicating with the database on the first level is called the First-level cache, also known as the session cache. It is responsible for caching items in the current session. Every request from the Session object to the database must travel via the first-level cache or the session cache before reaching the database. Therefore, it is essential to notice that the first-level cache remains accessible with the session object until it is no longer active.


Transactions allow establishing data consistency with the ability to roll back if anything goes wrong.

Persistent Objects

Persistent objects are traditional Java objects (POJOs) saved in the database as rows in the linked table by the Hibernate framework. Hibernate configuration files either configure these objects or mark them with the @Entity annotation.

Second-level Cache

The second-level cache keeps track of things over several sessions. Enable and provide the cache provider to use second-level cache. For example, EhCache is a popular second-level cache provider in many applications.

Learn Software Development Courses online from the World’s top Universities. Earn Executive PG Programs, Advanced Certificate Programs or Masters Programs to fast-track your career.

Explore our Popular Software Engineering Courses

Key Characteristics of the Hibernate Framework

Hibernate is a Java domain object mapping framework designed to manage database tables. The framework simplifies working on database items using Java objects rather than SQL statements. In addition, taking care of transaction management, automated primary key creation, managing database connections, and associated implementations contribute to the development process.

The Java Persistence API (JPA) standard is supported by the JPA provider Hibernate. It is a collection of standards for accessing, storing, and managing data. One can further use the advantage of Java objects and connect it with the relational database entities to ensure complete JPA support.

High-performance and scalability

While Hibernate can grow in any environment, it offers a wide range of performance-enhancing features such as optimistic locking, lazy initialisation, and several other techniques.

Simple to keep up with

Since Hibernate does not need custom database structures or attributes, it can get challenging to manage. It creates SQL during system startup. However, when compared to JDBC, it is easier to maintain.

Classes such as AnnotationConfiguration, ServiceRegistryBuilder, and others have been deprecated rapidly in previous Hibernate versions.

In-Demand Software Development Skills

The Concepts of Entities, Equality, and Identity

Hibernate offers additional concepts to compare objects or characteristics to satisfy precise business rules. Besides preexisting knowledge of checking equalities in Java core, Hibernate concepts are equally important to map.

1. Association Mappings between Hibernate Entities

When two entities are connected and referred to in a unidirectional or bi-directional way, use JPA annotations to annotate the java classes and turn them into permanent entities. First, however, it is crucial to grasp a few fundamental concepts before generating references between Hibernate entities.

2. Entity/Persistence are two different things

A Hibernate-mapped object instance carries one of four states: transitory, permanent, detached, or deleted, depending on the object instance state in question.

3. Cascade Types in Hibernate and JPA

The “CascadeType” property is used in entities to enable cascade and inverse effects. There are several types of cascading choices accessible via CascadeType.

Read our Popular Articles related to Software Development

Java Hibernate Tutorial: Example

In this Hibernate 5 tutorial part, we will explore and understand Hibernate with an example.

It is necessary to give two sets of configurations when creating hibernation apps. Database-specific characteristics from the first set of parameters are utilized to generate Session objects and Database connections. Model class and database table mapping are contained in the second set of configurations.

For settings involving database connections, employ either XML-based or properties-based approaches. Database table mapping and model classes can be provided by means of XML-based or annotation-based setups. For mappings that rely on annotations, utilize JPA annotations from Javax.persistence.

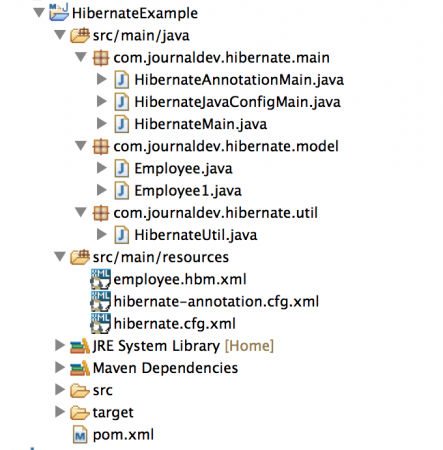

The graphic below depicts how our finished product will seem.

You can give your Maven project any name you choose when you create it in Eclipse or another IDE of your choosing. The database configuration must be completed before we can go on to the various project components.

Hibernate Database Table Setup

Make the most out of the best hibernate tutorial by using this database table setup as an example in your MySQL database. To generate the needed table, ensure following the code below:

CREATE TABLE `Employee` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `name` varchar(20) DEFAULT NULL,
  `role` varchar(20) DEFAULT NULL,
  `insert_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`)

Observe that MySQL generates the Employee table “id” column without any command, so you don’t need to insert it.

Advantages of Hibernate Annotations vs Mappings

Before inline annotations, the sole method of creating Hibernate mappings was XML files. Even though different tools from Hibernate and third-party projects enabled automatic production of mappings from the Java source, this was not the case.

Annotations are the most current defined mappings but not the most effective ones.

Here are a few advantages of Hibernate (or, more accurately, JPA) annotations.

Hibernate Query Language [HQL] is a query language for Hibernate

HQL shares similarities with object-oriented query language SQL. Its operation on permanent objects rather than tables and columns exhibits the functionality of a powerful query language.

JPQL, or Java Persistence Query Language, is a superset. Therefore, a valid JPQL query is considered a good HQL query. However, not all valid HQL queries are valid JPQL queries and vice versa.

Queries for Hibernate Criteria

Using the Criteria Query API, it is possible to construct nested, structured query expressions in Java, allowing for compile-time syntax verification not achievable with a query language like HQL or SQL. In addition to query by example (QBE) functionality, the Criteria API contains other features.

For example, providing object instances possessing the desired characteristics rather than explaining components of your search step by step may save time and effort. It also contains techniques for projection and aggregation, such as the count method ().

Configuration of the Hibernate EhCache

Caching feature given by ORM frameworks allows users to have a fast-running web application while allowing the framework to decrease queries made in the database for a single transaction. Caching is helpful for users and the framework. Hibernate extends caching at both the first and second levels of the hierarchy.


The Hibernate software is considered a highly functional framework for all things Java. In this Hibernate tutorial, we covered the basics of using Hibernate.

If you’d like to learn in-depth about the Hibernate framework and understand the fundamental end-to-end application flow emerging from integration with Spring 3 framework, we recommend joining upGrad’s Executive PG Programme in Full Stack Development.

Ads of upGrad blog

The 13-month course is designed for Software Developers, IT Professionals, Engineers, Analysts, Tech Support Professionals, and Freshers looking to develop a foundation in the Basics of Computer Science, Software Development Operations, Building Scalable Websites, Backend APIs, etc.

The program includes 10+ programming tools and languages, 7+ case studies and projects, boot camps, and access to Data Science & Machine Learning.

Don’t wait. Book your seat today!


Pavan Vadapalli

Blog Author
Director of Engineering @ upGrad. Motivated to leverage technology to solve problems. Seasoned leader for startups and fast moving orgs. Working on solving problems of scale and long term technology strategy.

Frequently Asked Questions (FAQs)

1How to create a SessionFactory in the Hibernate framework?

Any user application may request a session object by contacting Session Factory. The Session Factory uses the configuration information from files to create the session object properly.

2How to configure Hibernate Connection Pooling and Caching?

Hibernate, by default, makes use of JDBC connections to communicate with a database system. However, creating these connections is time-consuming, costly, and likely the most expensive single activity that Hibernate will do in a typical use scenario. In light of the high cost of JDBC connection management, you may employ the pool of connections, which establishes relationships ahead of time.

3What is a persistent class in Java?

Any class that adheres to object-oriented concepts such as inheritance and polymorphism may be a persistent class in a Java application.
