MLflow Tutorial: A Complete Guide to ML Experiment Tracking and Model Management

If you are building machine learning models, you already know how messy things get. You run 50 experiments, tweak hyperparameters, try different datasets, and suddenly you have no idea which run gave you the best accuracy. That is exactly the problem MLflow solves. It gives you a clean, structured way to track everything that happens during your ML workflow.

In this MLflow tutorial, you will learn what MLflow is, how to set it up, how to track experiments using Python, how to manage and register models, and how to serve them for real-world use. Whether you are just getting started or want to go deeper into production workflows, this guide covers it all with clear Python examples along the way.

Build practical AI and ML skills with upGrad’s Artificial Intelligence Courses. Learn machine learning, generative AI, and emerging technologies while working on real-world projects.

What Is MLflow and Why Should You Use It?

MLflow is an open-source platform built to manage the full machine learning lifecycle. It was created by Databricks and released in 2018. Today it is one of the most widely used tools for ML experiment tracking.

Here is what makes it worth your time:

• You can log parameters, metrics, and artifacts from any experiment
• It works with almost every ML framework: scikit-learn, TensorFlow, PyTorch, XGBoost, and more
• It gives you a visual UI to compare runs side by side
• It has a model registry to version and manage your trained models
• It supports deployment to multiple platforms including REST APIs, Docker, and cloud services

The core problem it solves: Without MLflow, you end up with a folder full of files named model_v2_final_FINAL.pkl and no memory of what settings produced it. MLflow replaces that chaos with a structured, searchable record of every experiment you run.

The Four Main Components of MLflow

Component	What It Does
MLflow Tracking	Logs parameters, metrics, and artifacts per run
MLflow Projects	Packages ML code for reproducible runs
MLflow Models	Standardizes model packaging across frameworks
MLflow Model Registry	Centralized store to version and manage models

You do not need to use all four at once. Most people start with Tracking and add the rest as their workflow grows.

Also Read: Docker Architecture Overview & Docker Components [For Beginners]

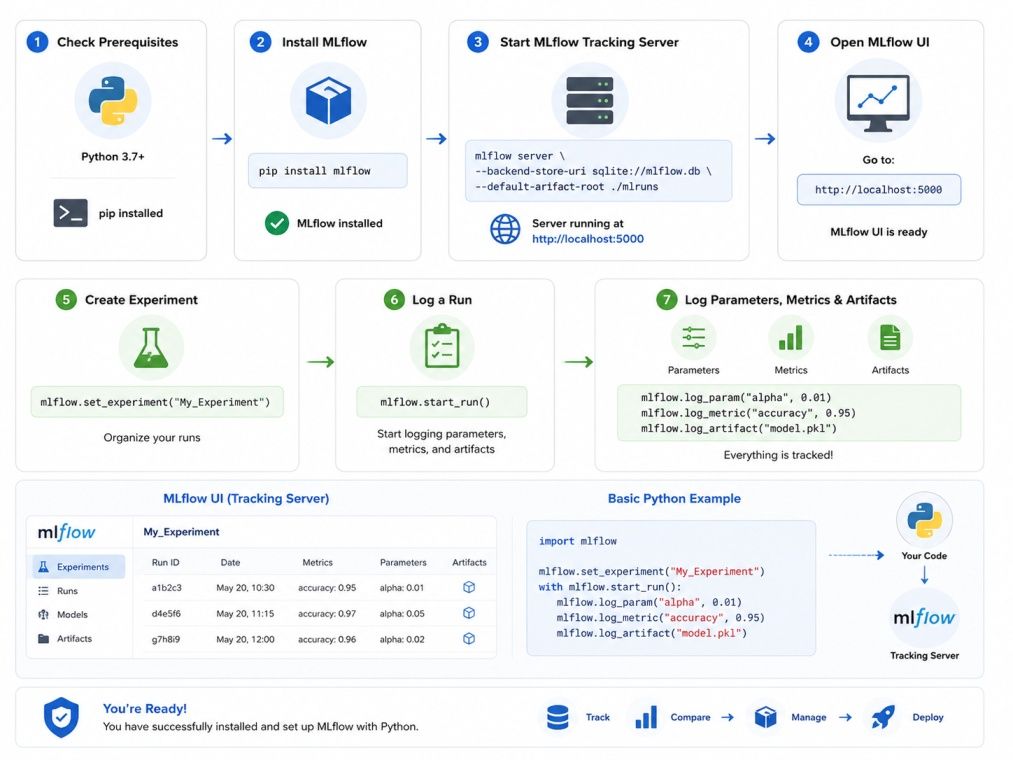

How to Install and Set Up MLflow with Python

Setting up MLflow is straightforward in this MLflow tutorial. You need Python 3.7 or above and pip.

Installation

pip install mlflow

To verify the installation:

mlflow --version

You should see something like mlflow, version 2.x.x.

Starting the MLflow UI

Once installed, you can launch the tracking UI locally:

mlflow ui

This starts a local server at http://127.0.0.1:5000. Open it in your browser and you will see the MLflow dashboard where all your experiment runs will appear.

What You Need Before Writing Code

• Python 3.7+
• A working pip environment (virtual environment recommended)
• MLflow installed
• Any ML library you plan to use (scikit-learn, XGBoost, etc.)

That is it. No databases, no cloud setup needed to get started. Everything is stored locally by default in an mlruns folder in your working directory.

Also Read: Python Libraries Explained: List of Important Libraries

MLflow Tutorial with Python: Tracking Your First Experiment

This is the core skill. Once you understand MLflow tracking, everything else builds on top of it. Let us walk through a complete MLflow tutorial with Python example using scikit-learn.

Basic Experiment Tracking

import mlflow
import mlflow.sklearn
from sklearn.linear_model import LogisticRegression
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# Load data
data = load_iris()
X_train, X_test, y_train, y_test = train_test_split(
   data.data, data.target, test_size=0.2, random_state=42
)

# Start an MLflow experiment
mlflow.set_experiment("iris-classification")

with mlflow.start_run():
   # Define and train model
   C = 0.1
   max_iter = 200
   model = LogisticRegression(C=C, max_iter=max_iter)
   model.fit(X_train, y_train)

   # Evaluate
   predictions = model.predict(X_test)
   accuracy = accuracy_score(y_test, predictions)

   # Log to MLflow
   mlflow.log_param("C", C)
   mlflow.log_param("max_iter", max_iter)
   mlflow.log_metric("accuracy", accuracy)
   mlflow.sklearn.log_model(model, "logistic-regression-model")

   print(f"Accuracy: {accuracy:.4f}")

What Each Function Does

Function	Purpose
mlflow.set_experiment()	Names the experiment group
mlflow.start_run()	Opens a new run to log into
mlflow.log_param()	Saves a single hyperparameter
mlflow.log_metric()	Saves a performance metric
mlflow.sklearn.log_model()	Saves the trained model artifact

After running this script, open http://127.0.0.1:5000 and you will see your run listed under the iris-classification experiment. You can click into it to see all the logged values.

Logging Multiple Params and Metrics at Once

Instead of calling log_param and log_metric one by one, you can batch them:

mlflow.log_params({"C": 0.1, "max_iter": 200, "solver": "lbfgs"})
mlflow.log_metrics({"accuracy": 0.9667, "f1_score": 0.9660})

This keeps your code cleaner, especially when you have many hyperparameters to track.

Logging Custom Artifacts

You can save any file as an artifact, like plots or CSV outputs:

import matplotlib.pyplot as plt

# Save a plot
plt.plot([1, 2, 3], [0.8, 0.85, 0.9])
plt.title("Accuracy over epochs")
plt.savefig("accuracy_plot.png")

mlflow.log_artifact("accuracy_plot.png")

This uploads the file to your MLflow run. You can view it directly in the UI.

Also Read: Enhance Your Python Skills: 10 Python Projects You Need to Try!

MLflow Model Registry: Versioning and Managing Models

Once you have tracked a few runs and found a model you like, the next step in this MLflow tutorial is registering it. The MLflow Model Registry gives you a structured way to version models and track their status through a lifecycle.

Registering a Model

After logging a model in a run, you can register it like this:

model_uri = f"runs:/{run_id}/logistic-regression-model"
mlflow.register_model(model_uri, "IrisClassifier")

Or do it directly inside your run:

with mlflow.start_run() as run:
   mlflow.sklearn.log_model(
       model,
       "logistic-regression-model",
       registered_model_name="IrisClassifier"
   )

Model Stages

The registry lets you assign a stage to each model version:

Stage	Meaning
None	Freshly registered, not reviewed
Staging	Being tested before production
Production	Live and serving predictions
Archived	Retired but kept for reference

You can transition between stages using the UI or programmatically:

from mlflow.tracking import MlflowClient

client = MlflowClient()
client.transition_model_version_stage(
   name="IrisClassifier",
   version=1,
   stage="Production"
)

This is especially useful in team environments where multiple people are developing and reviewing models before any of them go live.

Also Read: What Does a Machine Learning Engineer Do? Roles, Skills, Salaries, and More

Serving and Deploying MLflow Models

Tracking and registering models is only part of the story in this MLflow tutorial. At some point you need to serve predictions. MLflow makes this surprisingly easy.

Serving a Model Locally via REST API

Once a model is logged, you can serve it with a single command:

mlflow models serve -m "models:/IrisClassifier/Production" -p 5001

This starts a local REST server on port 5001. You can hit it with a POST request:

curl -X POST http://127.0.0.1:5001/invocations \
 -H "Content-Type: application/json" \
 -d '{"dataframe_split": {"columns": ["f1", "f2", "f3", "f4"], "data": [[5.1, 3.5, 1.4, 0.2]]}}'

The API returns the prediction as a JSON response.

Using pyfunc for Framework-Agnostic Loading

MLflow's pyfunc flavor lets you load any registered model without knowing which framework it was saved with:

import mlflow.pyfunc

model = mlflow.pyfunc.load_model("models:/IrisClassifier/Production")
predictions = model.predict(X_test)

This is powerful because your serving code does not need to change even if the underlying model framework changes from scikit-learn to XGBoost or PyTorch.

Deployment Options Beyond Local

Platform	How
Docker	mlflow models build-docker
AWS SageMaker	mlflow.sagemaker.deploy()
Azure ML	Via MLflow plugin
Kubernetes	Custom deployment with model URI

For production setups, you typically pair MLflow with a remote tracking server (using a database backend like PostgreSQL) and cloud storage (like S3 or Azure Blob) for artifacts.

Also Read: AI/ML Engineer Job Description

MLflow Autologging: Track Everything with One Line

One of the most useful features in MLflow is autologging. With a single line, MLflow automatically logs parameters, metrics, and models for supported libraries.

import mlflow
import mlflow.sklearn
from sklearn.ensemble import RandomForestClassifier
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split

mlflow.sklearn.autolog()  # This one line does the heavy lifting

data = load_iris()
X_train, X_test, y_train, y_test = train_test_split(
   data.data, data.target, test_size=0.2, random_state=42
)

with mlflow.start_run():
   model = RandomForestClassifier(n_estimators=100, max_depth=3)
   model.fit(X_train, y_train)

MLflow will automatically log:

• All hyperparameters passed to the model
• Training metrics
• The fitted model itself
• Feature importances (for tree-based models)

Autologging works with scikit-learn, TensorFlow, Keras, PyTorch Lightning, XGBoost, LightGBM, and Spark MLlib.

Also Read: Understanding Machine Learning Boosting: Complete Working Explained for 2025

Conclusion

MLflow takes the guesswork out of machine learning development. You stop wondering which model ran with which settings and start building a proper record of your work. This MLflow tutorial covered the full picture: from installation and basic tracking to model registration, deployment, and autologging.

The best way to learn is to run your next experiment inside MLflow. Even if you are just doing a quick test, log it. Over time that habit builds into a complete, searchable history of your ML projects.
