ID3 Algorithm in Machine Learning

The ID3 (Iterative Dichotomiser 3) algorithm is a widely used decision tree algorithm developed by Ross Quinlan in 1986 for classification problems. It builds a decision tree by repeatedly selecting the feature that provides the highest information gain, splitting the dataset into smaller and more organized groups. This top-down approach continues until the data is classified into distinct categories, or no further meaningful splits can be made.

This blog covers everything you need to know about ID3 algorithm in machine learning, whether you are just starting out or want a deeper technical understanding. You will learn how ID3 works, the math behind it (explained simply), a step-by-step id3 algorithm example in machine learning, and how to implement it in Python.

What is ID3 Algorithm in Machine Learning and How Does It Work?

The ID3 algorithm builds a decision tree by splitting data step by step. At each step, it picks the feature that gives the most information about the target label.

The process follows a top-down, greedy approach. "Greedy" here means it picks the best split at each node right now, without looking ahead to future splits. It does not backtrack or revise earlier choices.

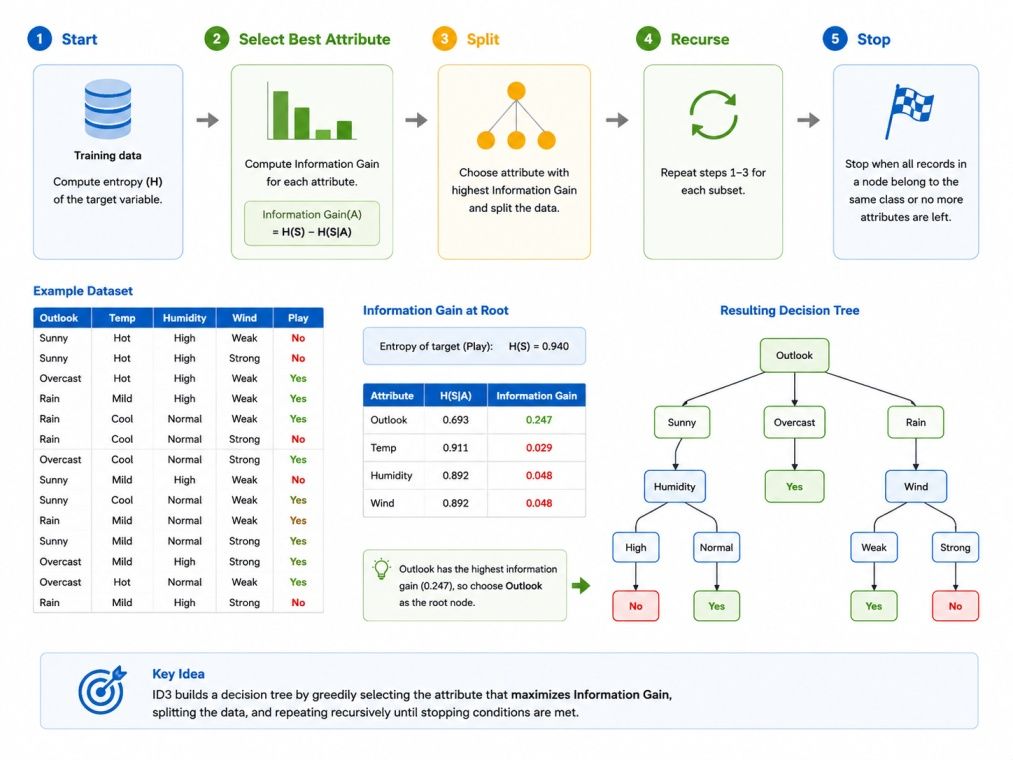

Here is how the algorithm runs from start to finish:

1. Start with the full dataset at the root node.
2. Calculate the entropy of the current dataset.
3. For each feature, calculate the information gain if we split on that feature.
4. Pick the feature with the highest information gain and create a node for it.
5. Split the data into subsets based on each value of that feature.
6. Repeat the process recursively for each subset.
7. Stop when all data in a subset belongs to one class, or there are no more features to split on.

What Is Entropy?

Entropy measures disorder or uncertainty in a dataset. If a dataset has an equal mix of classes, entropy is high. If all examples belong to one class, entropy is zero.

The formula for entropy is:

Entropy(S) = -sum [ p(i) * log2(p(i)) ]

Where p(i) is the proportion of examples belonging to class i.

Example: If a dataset has 5 "Yes" and 5 "No" labels:

Entropy = -(0.5 * log2(0.5)) - (0.5 * log2(0.5)) = 1.0

An entropy of 1.0 is maximum uncertainty. An entropy of 0 means all samples belong to one class.

What Is Information Gain?

Information gain tells you how much a feature reduces uncertainty. A higher information gain means the feature is more useful for splitting.

The formula is:

Information Gain = Entropy(Parent) - Weighted Average Entropy(Children)

The iterative dichotomiser 3 algorithm always picks the feature with the highest information gain at each step.

Also Read: A Detailed Guide to Feature Selection in Machine Learning

ID3 Algorithm Example in Machine Learning (Step by Step)

Let us walk through a classic id3 algorithm example in machine learning using a weather dataset to predict whether someone will play tennis.

The Dataset

Outlook	Temperature	Humidity	Wind	Play Tennis
Sunny	Hot	High	Weak	No
Sunny	Hot	High	Strong	No
Overcast	Hot	High	Weak	Yes
Rain	Mild	High	Weak	Yes
Rain	Cool	Normal	Weak	Yes
Rain	Cool	Normal	Strong	No
Overcast	Cool	Normal	Strong	Yes
Sunny	Mild	High	Weak	No
Sunny	Cool	Normal	Weak	Yes
Rain	Mild	Normal	Weak	Yes
Sunny	Mild	Normal	Strong	Yes
Overcast	Mild	High	Strong	Yes
Overcast	Hot	Normal	Weak	Yes
Rain	Mild	High	Strong	No

Total: 9 Yes, 5 No. 14 examples.

Step 1: Calculate Root Entropy

Entropy(S) = -(9/14)*log2(9/14) - (5/14)*log2(5/14)
           = -(0.643 * -0.637) - (0.357 * -1.485)
           = 0.940

Step 2: Calculate Information Gain for Each Feature

After splitting on each feature and calculating weighted child entropy, the information gains are approximately:

Feature	Information Gain
Outlook	0.246
Temperature	0.029
Humidity	0.151
Wind	0.048

Outlook has the highest information gain, so it becomes the root node.

Also Read: Understanding Decision Tree In AI: Types, Examples, and How to Create One

Step 3: Split on Outlook

• Overcast: All 4 examples are "Yes". Entropy = 0. This is a leaf node.
• Sunny: 2 Yes, 3 No. Need to split further.
• Rain: 3 Yes, 2 No. Need to split further.

The algorithm repeats the process for the Sunny and Rain subsets. For the Sunny subset, Humidity gives the highest information gain. For Rain, Wind does.

The final tree cleanly classifies all 14 examples correctly.

Machine Learning ID3 Algorithm in Python

Now let us look at how to implement the machine learning id3 algorithm in Python. We will keep things simple and practical.

Prerequisites

You need Python 3 and a basic understanding of dictionaries and recursion.

import math
from collections import Counter

# Calculate entropy of a list of labels
def entropy(labels):
   n = len(labels)
   if n == 0:
       return 0
   counts = Counter(labels)
   return -sum((count/n) * math.log2(count/n) for count in counts.values())

# Calculate information gain of a feature
def information_gain(data, feature, target):
   total_entropy = entropy([row[target] for row in data])

   # Get unique values for this feature
   values = set(row[feature] for row in data)

   # Weighted entropy after split
   weighted_entropy = 0
   for val in values:
       subset = [row for row in data if row[feature] == val]
       weight = len(subset) / len(data)
       weighted_entropy += weight * entropy([row[target] for row in subset])

   return total_entropy - weighted_entropy

# Build the ID3 decision tree
def id3(data, features, target):
   labels = [row[target] for row in data]

   # If all labels are same, return that label
   if len(set(labels)) == 1:
       return labels[0]

   # If no features left, return majority label
   if not features:
       return Counter(labels).most_common(1)[0][0]

   # Find best feature to split on
   best_feature = max(features, key=lambda f: information_gain(data, f, target))

   tree = {best_feature: {}}
   remaining_features = [f for f in features if f != best_feature]

   # Build subtrees for each value
   for val in set(row[best_feature] for row in data):
       subset = [row for row in data if row[best_feature] == val]
       if not subset:
            tree[best_feature][val] = Counter(labels).most_common(1)[0][0]
       else:
            tree[best_feature][val] = id3(subset, remaining_features, target)

   return tree


Using It with the Tennis Dataset

# Sample data (abbreviated)
dataset = [
   {"Outlook": "Sunny", "Humidity": "High", "Wind": "Weak", "Play": "No"},
   {"Outlook": "Overcast", "Humidity": "High", "Wind": "Weak", "Play": "Yes"},
   {"Outlook": "Rain", "Humidity": "Normal", "Wind": "Weak", "Play": "Yes"},
   # ... add all 14 rows
]

features = ["Outlook", "Humidity", "Wind"]
target = "Play"

tree = id3(dataset, features, target)
print(tree)

This implementation is clean enough to understand but also extensible. For production use, scikit-learn's DecisionTreeClassifier with criterion='entropy' runs the same logic at scale.

Using scikit-learn for Faster Implementation

from sklearn.tree import DecisionTreeClassifier
from sklearn.preprocessing import LabelEncoder
import pandas as pd

# Encode categorical data
data = pd.DataFrame(dataset)
le = LabelEncoder()
for col in data.columns:
   data[col] = le.fit_transform(data[col])

X = data.drop("Play", axis=1)
y = data["Play"]

# ID3 uses entropy criterion
clf = DecisionTreeClassifier(criterion='entropy')
clf.fit(X, y)

The criterion='entropy' parameter tells scikit-learn to use information gain just like the iterative dichotomiser 3 algorithm does.

Also Read: Scikit Learn Library in Python: Features and Applications

Advantages and Limitations of ID3 Algorithm in Machine Learning

Understanding where ID3 Algorithm in Machine Learning shines and where it falls short helps you decide when to use it.

Advantages

• Simple to understand. The tree structure maps directly to human logic. You can read it and explain it.
• No need to scale features. ID3 works with raw categorical data. No normalization needed.
• Fast on small datasets. For datasets with a few hundred to a few thousand rows, it builds trees quickly.
• Interpretable. You can trace any prediction back through the tree and see exactly why it was made.

Limitations

Limitation	What It Means
Overfitting	ID3 builds trees that fit training data perfectly, often too perfectly
No pruning	It does not simplify the tree after building it
Numerical features	It handles only categorical data natively; continuous values need binning
Bias toward many values	Features with many unique values get higher information gain unfairly
No missing values	ID3 cannot handle missing data without preprocessing

These limitations are why Quinlan later developed C4.5 and C5.0, which handle continuous features, missing values, and pruning.

ID3 Algorithm in Machine Learning vs Other Decision Tree Algorithms

The iterative dichotomiser 3 algorithm was the starting point, but the field has moved further. Here is how it compares:

Feature	ID3	C4.5	CART
Splitting criterion	Information Gain	Gain Ratio	Gini Impurity
Numerical features	No	Yes	Yes
Pruning	No	Yes	Yes
Missing values	No	Yes	Yes
Multi-way splits	Yes	Yes	Binary only
Used in scikit-learn	No (only entropy)	Partially	Yes (default)

When to use ID3: For learning, coursework, and categorical-only datasets where interpretability matters most.

When to use CART or C4.5: For real-world projects where data is messy, features are numerical, or you need better generalization.

Also Read: 5 Must-Know Steps in Data Preprocessing for Beginners!

Real-World Applications of ID3 Algorithm in Machine Learning

Despite its age, the ideas behind machine learning id3 algorithm are used in several domains.

• Medical diagnosis: Classifying patients as high or low risk based on categorical test results.
• Customer segmentation: Grouping customers by behavior, region, and product preferences.
• Email filtering: Early spam filters used tree-based rules similar to ID3.
• Loan approval systems: Evaluating categorical applicant data like employment status and credit history.
• Education platforms: Platforms like upGrad use decision-tree-based recommendation logic to suggest relevant courses based on learner profiles.

The algorithm's strength is its transparency. In regulated industries like finance and healthcare, being able to explain a prediction is not optional. ID3 and its descendants make that possible.

Conclusion

The ID3 algorithm in machine learning is a foundational concept that every ML learner should understand. It teaches you the core idea of how machines make decisions: by asking the most informative questions first, using entropy and information gain as guides.

Starting from a simple dataset, ID3 builds a tree that mirrors how a human expert might reason through a problem. The math is straightforward, the logic is visual, and the id3 algorithm example in machine learning with the tennis dataset makes it concrete.
