Graph Neural Networks

Graph neural networks are deep learning models built to work with graph-structured data. Instead of rows and columns, they focus on nodes and edges. This allows graph neural networks to capture relationships, dependencies, and structure that traditional neural networks often miss.

They use a message-passing approach where each node learns by gathering information from its neighbors. This makes graph neural networks effective for tasks such as social network analysis, recommendation systems, and molecular research, where connections between entities matter as much as the entities themselves.

In this blog, you will learn what graph neural networks are, its architecture, how they work, and where they are used.

Enroll in upGrad’s Artificial Intelligence Courses and learn how to implement GNN models and apply them to real-world problems through hands-on projects.

What Are Graph Neural Networks and Why They Matter

Graph neural networks work on data where relationships are the core signal. Instead of treating data points independently, they model how entities connect and influence each other.

This makes them suitable for problems where structure carries meaning.

How Graph Neural Networks Represent Data

They use graphs as input.

• Nodes represent entities such as users, products, or molecules
• Edges represent relationships such as interactions, similarity, or transactions
• Node features store attributes linked to each entity

Learning happens by updating node information based on connected nodes.

Also Read: Capsule Neural Networks: What is, How it Works, Architecture & Components

Why Traditional Models Fall Short

Standard neural networks assume fixed-size inputs. They struggle with irregular structures and changing connections.

Graph neural networks solve this by:

• Handling variable graph sizes
• Preserving relationship structure
• Learning patterns across connections

This allows better predictions when links matter more than isolated values.

Why Graph Neural Networks Matter Today

Modern data is highly connected.

• Social platforms rely on user networks
• Financial systems track linked transactions
• Scientific data maps complex interactions

Graph neural networks extract insights from these connections, making them critical for real-world, relationship-driven problems.

Also Read: Discover How Neural Networks Work to Transform Modern AI!

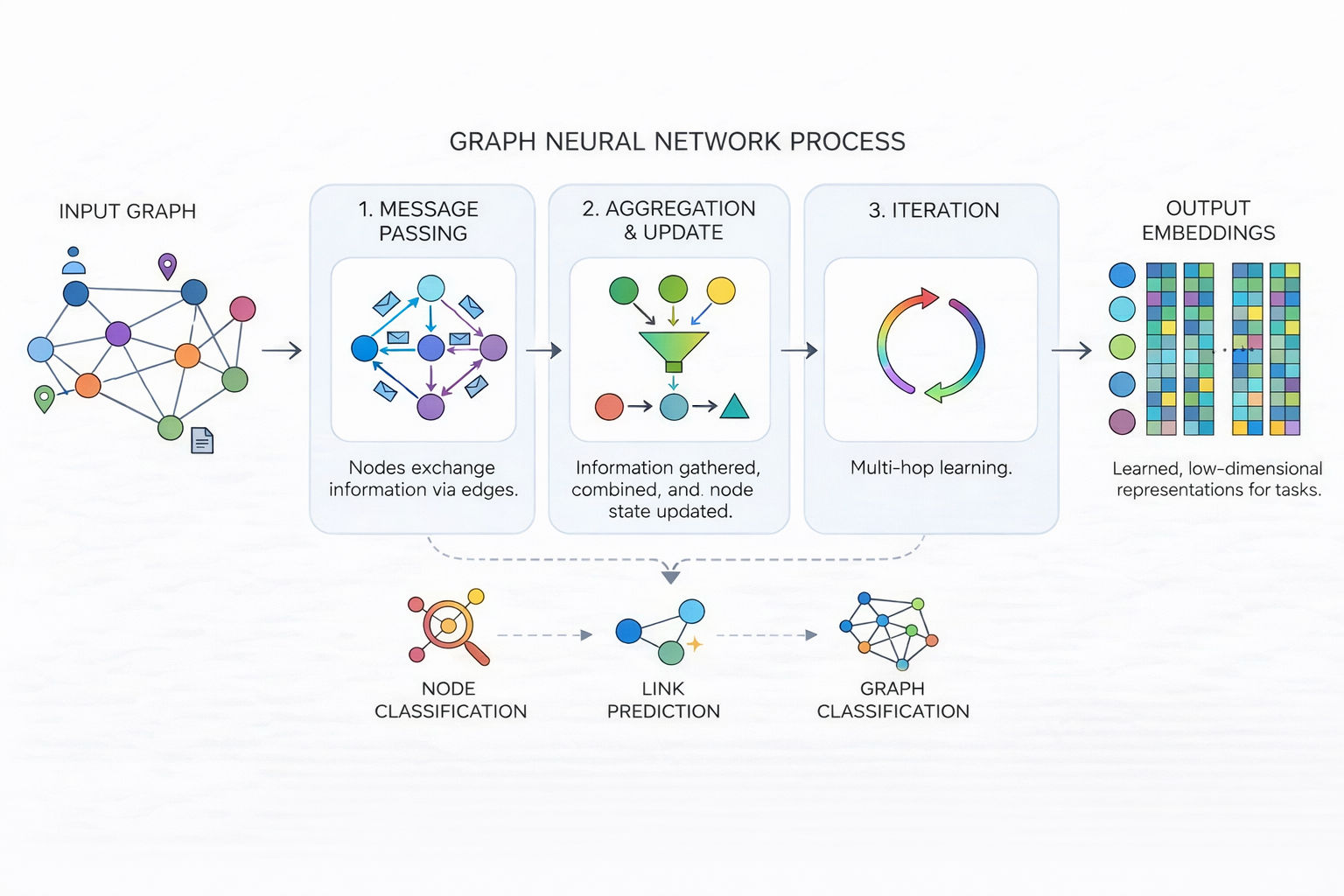

How Graph Neural Networks Work Step by Step

Graph neural networks follow a structured learning flow built around connections in data. Instead of treating each data point in isolation, they allow linked nodes to share information.

Below is a clear, step-by-step breakdown of how this process works.

Step 1: Graph Input

The process begins with a graph representation of data.

• Nodes represent entities such as users, products, or molecules
• Edges define relationships between those entities
• Node features store attributes linked to each node

This graph becomes the direct input to the model.

Also Read: Neural Network Architecture

Step 2: Neighbor Message Passing

Each node starts interacting with its neighbors.

• Nodes send information to directly connected nodes
• Shared data helps capture local structure
• Relationships guide how information flows

This step allows nodes to understand their immediate context.

Step 3: Message Aggregation

Nodes collect information from neighbors.

• Incoming messages are combined
• Useful patterns are retained
• Unnecessary noise is reduced

The result is a summarized view of surrounding nodes.

Also Read: Recurrent Neural Networks: Introduction, Problems, LSTMs Explained

Step 4: Node Update

Each node updates its representation.

• Original features mix with aggregated information
• Updated values store richer context
• Representations become more informative

This step refines how each node understands its role in the graph.

Step 5: Layer-by-Layer Learning

The message passing and update process repeats.

• Information travels beyond immediate neighbors
• Nodes gain broader graph awareness
• Structural patterns become clearer

More layers allow deeper learning across connections.

Step 6: Final Output Generation

The model produces predictions based on learned representations.

• Node-level outputs for classification tasks
• Edge-level outputs for relationship prediction
• Graph-level outputs for whole-graph analysis

Each output reflects knowledge built through repeated information sharing and updates.

Also Read: Convolutional Neural Networks: Ultimate Guide for Beginners

Common Types of Graph Neural Networks

Different graph neural network models are designed to handle different graph structures and problem sizes. Each type follows the same core idea of learning from connected nodes, but they differ in how information is aggregated and updated.

Graph Convolutional Networks (GCNs)

Graph Convolutional Networks are one of the earliest and most widely used models.

• Neighbor node features are combined using a fixed aggregation rule
• Information spreads evenly across connected nodes
• Best suited for smaller or moderately sized graphs

GCNs work well for tasks like node classification in citation networks and social graphs.

Also Read: Explore 8 Must-Know Types of Neural Networks in AI Today!

Graph Attention Networks (GATs)

Graph Attention Networks improve flexibility by using attention.

• Not all neighbors are treated equally
• Important neighbors receive higher attention scores
• Less relevant connections receive lower weight

This makes GATs effective when graph connections are noisy or uneven in importance.

GraphSAGE

GraphSAGE is designed for scalability.

• Samples a fixed number of neighbors
• Learns how to aggregate information instead of using fixed rules
• Handles large and dynamic graphs efficiently

It is commonly used in recommendation systems and real-time applications.

Also Read: Top 40 AI Projects to Build in 2026 for Career Growth

Graph Isomorphism Networks (GINs)

Graph Isomorphism Networks focus on expressive power.

• Strong at distinguishing graph structures
• Uses powerful aggregation functions
• Performs well on graph classification tasks

GINs are often used in chemical and biological graph analysis.

Comparison Overview

Model	Key Strength	Best Use Case
GCN	Simple and stable	Small to medium graphs
GAT	Adaptive neighbor weighting	Noisy or complex graphs
GraphSAGE	Scalable learning	Large graphs
GIN	High expressiveness	Graph-level tasks

Each type builds the same foundation but solves different challenges depending on graph size, complexity, and task requirements.

Also Read: AI Course Fees and Career Opportunities in India for 2026

Implementation of a Graph Neural Network (GNN)

Below is a simple and beginner-friendly implementation of a Graph Neural Network using PyTorch Geometric.

The example focuses on node classification, which is one of the most common GNN tasks.

Step 1: Install Required Libraries

pip install torch torch-geometric

Step 2: Import Libraries

import torch
import torch.nn.functional as F
from torch_geometric.nn import GCNConv
from torch_geometric.datasets import Planetoid

Step 3: Load Graph Dataset

Here we use the Cora citation network.

dataset = Planetoid(root='data', name='Cora')
data = dataset[0]

What this graph contains:

• data.x → node features
• data.edge_index → graph connections
• data.y → node labels

Also Read: AI Engineer Salary in India [For Beginners & Experienced]

Step 4: Define the GNN Model

class GNN(torch.nn.Module):
    def __init__(self):
        super(GNN, self).__init__()
        self.conv1 = GCNConv(dataset.num_features, 16)
        self.conv2 = GCNConv(16, dataset.num_classes)

    def forward(self, data):
        x, edge_index = data.x, data.edge_index

        x = self.conv1(x, edge_index)
        x = F.relu(x)
        x = self.conv2(x, edge_index)

        return x

What happens here:

• First layer gathers neighbor information
• ReLU adds non-linearity
• Second layer produces class scores

Step 5: Train the Model

model = GNN()
optimizer = torch.optim.Adam(model.parameters(), lr=0.01)
loss_fn = torch.nn.CrossEntropyLoss()

for epoch in range(200):
    model.train()
    optimizer.zero_grad()

    out = model(data)
    loss = loss_fn(out[data.train_mask], data.y[data.train_mask])
    loss.backward()
    optimizer.step()

    if epoch % 20 == 0:
        print(f"Epoch {epoch}, Loss: {loss.item():.4f}")

Output:

Epoch 0, Loss: 1.9471

Epoch 20, Loss: 0.1207

Epoch 40, Loss: 0.0100

Epoch 60, Loss: 0.0038

Epoch 80, Loss: 0.0026

Epoch 100, Loss: 0.0020

Epoch 120, Loss: 0.0016

Epoch 140, Loss: 0.0013

Epoch 160, Loss: 0.0011

Epoch 180, Loss: 0.0010

Training logic:

• Forward pass on the graph
• Compute loss on training nodes
• Backpropagate and update weights

Also Read: Best 30 Artificial Intelligence Projects

Step 6: Evaluate the GNN

model.eval()
pred = model(data).argmax(dim=1)
correct = (pred[data.test_mask] == data.y[data.test_mask]).sum()
accuracy = int(correct) / int(data.test_mask.sum())

print(f"Test Accuracy: {accuracy:.4f}")


Output:

Test Accuracy: 0.7750

Step 7: Visualize GNN Predictions

Visualization helps you see how the GNN separates nodes after learning.

Here, node colors represent predicted classes.

import matplotlib.pyplot as plt
from sklearn.manifold import TSNE

model.eval()
embeddings = model(data).detach()

tsne = TSNE(n_components=2)
node_embeddings_2d = tsne.fit_transform(embeddings)

plt.figure(figsize=(8, 6))
plt.scatter(
    node_embeddings_2d[:, 0],
    node_embeddings_2d[:, 1],
    c=pred,
    cmap="tab10",
    s=15
)
plt.title("GNN Node Embeddings Visualization")
plt.show()

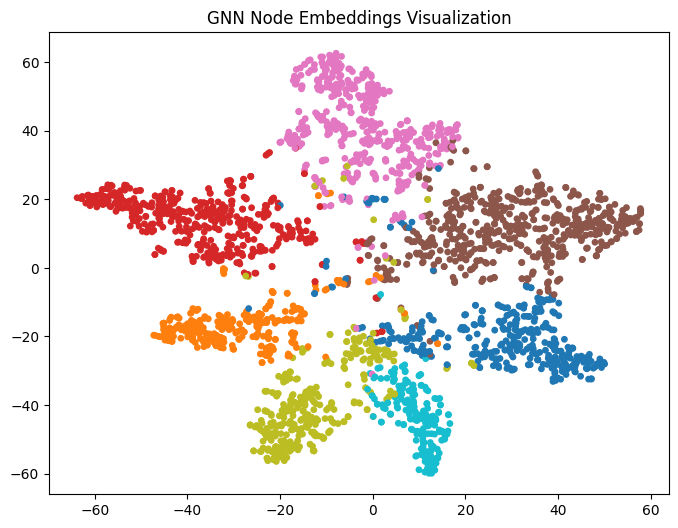

Output:

What This Visualization Shows

• Each point represents a node
• Color shows the predicted class
• Nearby points share similar representations

This makes it easier to understand how the GNN groups related nodes after learning from graph structure and node features.

What This GNN Is Learning

• Nodes learn from neighboring nodes
• Information spreads through graph layers
• Final embeddings capture structure and features

This implementation shows how graph neural networks are built and trained in practice, using real graph data and a clean learning flow.

Also Read: What Is Production System in AI? Key Features Explained

Real-World Use Cases of Graph Neural Networks

Graph neural networks are used when relationships between data points matter as much as the data itself. Below are practical, real-world use cases where graph-based learning delivers clear value.

Social Network Analysis

Social platforms rely heavily on connected data.

• Users are nodes
• Friendships, follows, and interactions are edges
• Communities form through dense connections

Graph neural networks help with friend suggestions, community detection, and influence analysis by learning from how users are connected and interacting over time.

Also Read: Job Opportunities in AI: Salaries, Skills & Careers

Recommendation Systems

Modern recommendation engines use graphs to model behavior.

• Users connect to products, movies, or content
• Items connect to similar items
• Interactions strengthen or weaken relationships

This structure helps deliver more relevant recommendations by understanding both user behavior and item relationships.

Fraud Detection

Fraud often hides in complex connection patterns.

• Accounts link to transactions
• Devices connect multiple users
• Suspicious loops or clusters emerge

Graph neural networks detect abnormal relationship patterns that traditional models often miss.

Search and Knowledge Graphs

Search engines and assistants use knowledge graphs.

• Entities act as nodes
• Facts and relationships act as edges
• Context flows across connections

This improves entity understanding, ranking quality, and answer relevance.

Also Read: The Future Scope of Artificial Intelligence in 2026 and Beyond

Healthcare and Biology

Biological data is naturally graph-based.

• Molecules contain atoms as nodes
• Proteins interact through complex networks
• Biological pathways form large graphs

Graph neural networks support drug discovery, protein interaction analysis, and disease modeling.

These real-world applications show why graph neural networks are valuable wherever data is highly connected, and relationships drive outcomes.

Challenges and Limitations of Graph Neural Networks

Graph neural networks are powerful, but they come with practical challenges. Understanding these limits helps you use them effectively and avoid common pitfalls.

Below is the table explaining the major challenges:

Challenge	Description
Scalability	Large graphs with millions of nodes increase memory use and slow training due to repeated message passing.
Over-smoothing	Too many layers cause node representations to become similar, reducing the model’s ability to distinguish nodes.
Computational cost	Irregular graph structures make computation slower and harder to optimize on GPUs.
Graph quality dependency	Missing or noisy edges reduce learning effectiveness and can mislead the model.
Limited interpretability	Explaining why a prediction was made is difficult because influence across nodes is hard to trace.
Generalization issues	Some models struggle to adapt to new or dynamic graphs without retraining them.

Also Read: Top 20 Challenges of Artificial Intelligence

Conclusion

Graph neural networks offer a powerful way to learn from connected data by modeling relationships directly. They work well in areas where structure and interaction matter more than isolated values. By understanding their architecture, use cases, and limits, you can decide when graph neural networks are the right choice for solving real-world problems.
