Understanding Hadoop Ecosystem: Architecture, Components & Tools

The Hadoop ecosystem is one of the most widely used frameworks in big data. It offers a collection of tools, components, and services that work together to store, manage, and analyze massive datasets. From distributed storage in HDFS to processing with MapReduce and Spark, the ecosystem provides everything needed to handle data at scale.

In this blog, you will learn what the Hadoop ecosystem is, how its architecture works, the role of different components and tools, its applications in real-world industries, and where it stands in the modern big data landscape.

Master Big Data and analytics with our Online Data Science Course and take your career to the next level!

What is the Hadoop Ecosystem?

The Hadoop ecosystem is a collection of open-source frameworks, tools, and services that work together to solve big data problems. Instead of being a single product, it’s more like a set of building blocks that help you store, process, and analyze huge amounts of data.

At its core, the ecosystem is designed to handle data that’s too large or too complex for traditional databases. It allows you to work with both structured data (like tables in a database) and unstructured data (like logs, images, or social media posts).

Start your journey of career advancement in data science with upGrad’s top-ranked courses and get a chance to learn from industry-established mentors:

• Masters in Data Science from Liverpool John Moores University
• Generative AI Mastery Certificate for Data Analysis
• Executive Post Graduate Certificate Programme in Data Science & AI

Key Points to Understand

Here are some simple ideas to help you get a clear picture of what the Hadoop ecosystem means in big data:

• Not just one tool: Hadoop ecosystem includes multiple tools, each serving a specific purpose.
• Scalable and distributed: It works across many machines instead of relying on a single server.
• Handles all kinds of data: From numbers and text to media files.
• Flexible: You can plug in different tools depending on your use case.

Core Capabilities of the Hadoop Ecosystem

Before we dive deeper into the architecture and components, here’s what the ecosystem lets you do:

• Store data securely across multiple nodes.
• Manage resources for efficient performance.
• Process large-scale data in both batch and real time.
• Access data using SQL-like queries or programming models.
• Integrate tools for ingestion, workflow, or visualization.

Quick Overview: Core vs. Extended Tools

The Hadoop ecosystem is often explained in two parts: the core framework and the extended tools that sit on top of it.

Here’s a simple table to understand this:

Why the Hadoop Ecosystem Matters in Big Data

The reason the Hadoop ecosystem is so widely discussed in big data is because it solves the core challenge: handling massive, diverse, and fast-moving data. With its distributed approach, it makes data storage and processing both affordable and reliable.

In short, the Hadoop  gives you a complete framework, covering everything from raw data collection to analysis, making it a foundation for many modern big data solutions.

Also Read: Hadoop Tutorial: Ultimate Guide to Learn Big Data Hadoop

Hadoop Ecosystem Architecture Explained

The Hadoop ecosystem architecture is built to handle massive amounts of data by splitting the work across many machines. Instead of relying on one powerful computer, Hadoop uses a distributed approach where each system in the cluster shares the load. This makes it cost-effective, scalable, and fault tolerant.

At a high level, the architecture has three main layers: storage, resource management, and processing. Together, these layers form the backbone of the Hadoop ecosystem in big data.

Core Layers of the Architecture

Here’s a simple breakdown of how the architecture is structured:

Storage Layer – HDFS (Hadoop Distributed File System)

• Stores data across multiple machines.
• Breaks large files into smaller blocks and replicates them for reliability.

Resource Management Layer – YARN (Yet Another Resource Negotiator)

• Allocates computing resources to different applications.
• Handles scheduling of jobs across the cluster.

Also Read: Hadoop YARN Architecture: Comprehensive Guide to YARN Components and Functionality

Processing Layer – MapReduce (and other engines like Spark)

• Processes data in parallel by splitting tasks into smaller jobs.
• Handles batch processing efficiently.

Flow of Data in the Hadoop Ecosystem

To understand how these layers work together, think of it as a step-by-step journey of data inside the Hadoop ecosystem:

1. Data enters Hadoop through ingestion tools (like Sqoop or Flume).
2. HDFS stores the raw data in blocks across multiple nodes.
3. YARN checks available resources and assigns jobs.
4. Processing engines like MapReduce or Spark run computations on the stored data.
5. Results are accessed through tools like Hive, Pig, or external BI platforms.

Table: Overview of Hadoop Ecosystem Architecture Layers

Why the Architecture Works Well for Big Data

The design of the Hadoop ecosystem architecture allows it to solve problems traditional systems struggle with. Some reasons it works so effectively are:

• Scalability: You can add more machines to handle growing data.
• Fault Tolerance: Data replication ensures no data is lost if one node fails.
• Flexibility: Supports both batch and real-time data processing.
• Cost Efficiency: Uses commodity hardware instead of expensive servers.

The layered architecture makes Hadoop more than just storage or processing, it’s a complete framework that ensures big data is managed from start to finish in a reliable way.

Also Read: MapReduce in Big Data: Understanding the Core of Scalable Data Systems

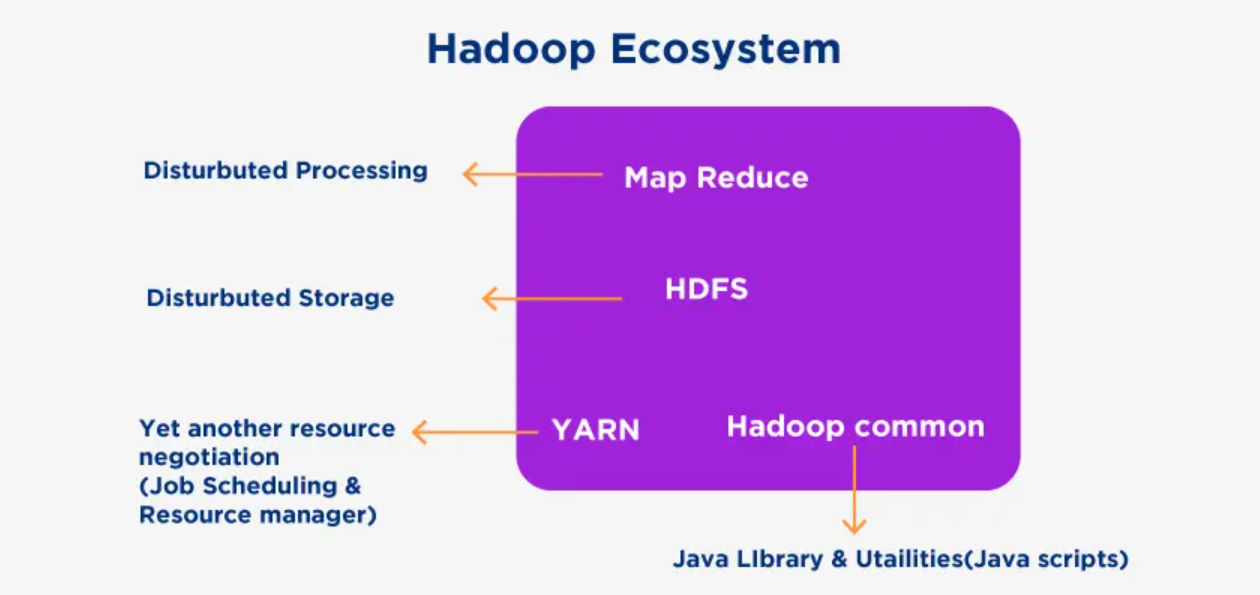

Key Components of the Hadoop Ecosystem

The Hadoop  is made up of a set of core components that work together to handle storage, processing, and coordination of big data. These components are the backbone of the ecosystem, and every other tool builds on top of them.

Hadoop Distributed File System (HDFS)

HDFS is the storage system of Hadoop. It’s designed to store very large files by breaking them into smaller blocks and spreading them across different nodes in a cluster.

• Stores data in blocks for easy distribution.
• Replicates each block across multiple machines for fault tolerance.
• Provides high throughput access for large datasets.

Yet Another Resource Negotiator (YARN)

YARN is the resource manager of the Hadoop ecosystem. It helps decide which applications get access to which resources in the cluster.

• Allocates resources to different jobs.
• Schedules tasks across nodes efficiently.
• Keeps the cluster balanced to avoid overloading any single machine.

MapReduce

MapReduce is the original processing engine in the Hadoop ecosystem. It breaks large problems into smaller tasks and runs them in parallel across the cluster.

• Map phase splits the input into key-value pairs.
• Reduce phase combines the results into meaningful output.
• Best suited for batch processing of massive datasets.

Hadoop Common

Hadoop Common is the shared set of libraries and utilities that support the other components. Without it, the rest of the ecosystem cannot function smoothly.

• Provides Java libraries for Hadoop programs.
• Supports file system operations and system-level tasks.
• Acts as the foundation for all other Hadoop modules.

Quick Comparison Table: Core Components of the Hadoop Ecosystem

These four components form the core architecture of the Hadoop ecosystem. Together, they make it possible to store massive datasets reliably, manage computing resources, process large volumes of data, and provide the essential framework for other advanced tools like Hive, Pig, Spark, and HBase.

Also Read: 14 Must-Have Hadoop Developer Skills for the Big Data Era

Extended Tools in the Hadoop Ecosystem

Beyond the core components, the Hadoop includes a variety of extended tools that make it easier to ingest, process, store, and analyze data. These tools enhance the capabilities of Hadoop and allow users to handle different types of big data tasks more efficiently.

Data Ingestion Tools

Data ingestion tools help bring data into the Hadoop ecosystem from various sources.

• Apache Flume: Collects and moves streaming data like logs from different sources into HDFS.
• Apache Sqoop: Transfers structured data between relational databases and Hadoop.

These tools ensure that Hadoop can work with data from both real-time streams and traditional databases.

Data Storage and Management Tools

Once data is ingested, storage and management tools help organize and store it in ways that make processing easier.

• HBase: A NoSQL database that stores large amounts of sparse data in a scalable way.
• Hive: A data warehouse tool that allows SQL-like queries on Hadoop datasets.
• HCatalog/Atlas: Helps manage metadata for datasets across Hadoop tools.

Also Read: HBase Tutorial: Comprehensive Guide to Beginners [2024]

Data Processing and Analysis Tools

Processing tools allow you to transform and analyze data stored in Hadoop.

• Apache Pig: Lets you write scripts to process data without needing complex Java code.
• Apache Spark: Provides fast, in-memory data processing for both batch and real-time applications.

These tools make it easier to perform complex computations and get insights from large datasets.

Data Access and Workflow Tools

Some tools focus on managing jobs, workflows, and coordination across the ecosystem.

• Oozie: Schedules and manages Hadoop workflows.
• Zookeeper: Provides coordination services for distributed applications.

Also Read: Apache Oozie Tutorial: Introduction, Workflow & Easy Examples

Data Visualization and Business Intelligence Tools

Visualization tools help interpret and present the results of data processing.

• Apache Impala: Enables real-time SQL queries on Hadoop data.
• Can also integrate with business intelligence tools to produce reports and dashboards.

Table: Extended Hadoop Ecosystem Tools and Their Roles

Together, these extended tools make the Hadoop ecosystem a complete platform for big data projects, supporting everything from raw data ingestion to analytics and visualization.

Also Read: Ultimate Impala Hadoop Tutorial You Will Ever Need [2024]

Hadoop Ecosystem in Big Data: Use Cases

The Hadoop ecosystem is widely used in big data projects because it can store, manage, and process massive volumes of data efficiently. Its flexibility and scalability make it suitable for a range of real-world applications across different industries.

Common Use Cases of Hadoop Ecosystem

Here are some of the main ways organizations leverage Hadoop ecosystem in big data projects:

• Large-scale Data Storage: Hadoop can store terabytes or petabytes of data across distributed servers, making it ideal for companies that generate huge datasets.
• Log and Event Processing: Web applications, servers, and IoT devices produce logs continuously. Hadoop ecosystem tools like Flume and Spark help process these logs in real time or batch mode.
• Machine Learning Workflows: Data scientists use Hadoop for storing and preprocessing data before training machine learning models. Spark integrates well for real-time predictive analytics.
• Enterprise Analytics: Businesses analyze customer behavior, sales trends, or operational metrics using Hive, Pig, and Impala.

Industry Examples

Different sectors use Hadoop ecosystem differently based on their data needs.

• Banking & Finance: Fraud detection, risk management, and transaction analysis.
• Healthcare: Patient record management, genomics data analysis, and medical research.
• E-commerce: Customer recommendations, clickstream analysis, and inventory management.
• Telecom: Network performance monitoring, call data record analysis, and churn prediction.

Table: Hadoop Ecosystem Use Cases Across Industries

Why Hadoop Ecosystem Works for Big Data

The ecosystem’s distributed architecture allows organizations to handle huge datasets without relying on expensive hardware. Its tools support both batch processing (large-scale computations) and real-time processing (live data analysis). This makes Hadoop ecosystem a versatile choice for businesses that need to make sense of complex, fast-moving, and diverse data.

By understanding these use cases, beginners can see how Hadoop ecosystem in big data is applied practically, rather than just theoretically. It bridges the gap between raw data and actionable insights.

Advantages and Challenges of the Hadoop Ecosystem

The Hadoop ecosystem offers many benefits for working with big data, but it also comes with some challenges. Understanding both helps you decide when and how to use Hadoop effectively.

Advantages of the Hadoop Ecosystem

Hadoop is widely adopted because it solves problems traditional systems struggle with. Key advantages include:

• Scalability: Easily handles growing datasets by adding more nodes to the cluster.
• Cost-Effectiveness: Uses commodity hardware instead of expensive, high-end servers.
• Fault Tolerance: Data replication in HDFS ensures that data isn’t lost if a node fails.
• Flexibility: Can store and process structured, semi-structured, and unstructured data.
• Supports Batch and Real-Time Processing: Core components like MapReduce handle batch jobs, while tools like Spark allow near real-time analytics.

Challenges of the Hadoop Ecosystem

Despite its benefits, Hadoop has some limitations that beginners and organizations should be aware of:

• Complex Setup and Maintenance: Setting up a Hadoop cluster requires technical knowledge and proper configuration.
• Steep Learning Curve: Learning the ecosystem’s tools (Hive, Pig, Spark, etc.) can take time.
• Not Efficient for Small Data: Hadoop shines with massive datasets; small datasets may run slower than on traditional systems.
• High Latency for Certain Tasks: Batch processing with MapReduce can take longer for complex jobs.
• Security Concerns: Proper setup is needed for data security and access control.

Table: Advantages vs Challenges of the Hadoop Ecosystem

By weighing these advantages and challenges, you can see why the Hadoop ecosystem remains popular in big data projects, while also understanding where careful planning and expertise are required.

Conclusion

The Hadoop ecosystem provides a complete framework for storing, processing, and analyzing large datasets. Its core components and extended tools make it flexible and scalable for different big data tasks.

Despite some challenges like setup complexity, its fault tolerance, cost-effectiveness, and ability to handle diverse data make it essential for modern data projects.

Reference Link:
https://hadoop.apache.org/
