Diabetes Prediction Analysis Project Using R

Diabetes is one of the most prevalent diseases in the current times. With cases rising from 200 million in 1990 to 830 million in 2022, according to the WHO. This Diabetes Prediction Analysis Project in R will focus on building machine learning models to predict the likelihood of diabetes based on health-related factors like age, BMI, blood glucose level, and more.

Using R in Google Colab, this beginner-friendly project walks through data loading, cleaning, exploration, and modeling using Logistic Regression and Random Forest.

It helps users understand classification techniques, evaluate model performance, and visualize key trends in the data. This project is ideal for those looking to apply predictive analytics in healthcare using R.

Also Read: Top 25+ R Projects for Beginners to Boost Your Data Science Skills in 2025

What Skills and Tools Will You Need for This Diabetes Prediction Project?

Before starting the Diabetes Prediction Analysis Project in R, it's necessary to understand what you’ll be working with. This project is designed for beginners and uses simple tools and libraries in R. The table below shows the required tools, libraries, and skills you’ll need for this project.

Launch your career with globally recognized programs in Data Science and AI from top universities. Gain skills, industry mentorship, and credentials that set you apart. Enrol today—lead tomorrow’s data revolution.

• MS in Data Science from Liverpool John Moores University
• Executive Diploma in Data Science & AI From IIITB
• Master’s Degree in Artificial Intelligence and Data Science From OPJGU

Step-by-Step Guide to Building the Diabetes Prediction Model in R

In this section, we’ll see how to build this diabetes prediction model using R. The code for each step is given along with the output and explanation.

Step 1 – Configuring Google Colab for R

To begin working with R in Google Colab, it's important to switch the notebook’s default language from Python to R. This enables the execution of R code directly within the environment.

To do this, open a new Colab notebook and click on the Runtime menu at the top. Choose the Change runtime type option. In the dialog box that shows up, change the language setting to R using the dropdown menu and then click Save.

Step 2 – Installing and Loading Required Libraries

In this step, we prepare the environment by installing and loading the libraries needed for steps like data handling, model training, data splitting, and evaluation. We only need to install the packages once, but we must load them every time you run the notebook.

# Install essential libraries (run only once)
install.packages("tidyverse")     # For data wrangling and visualization
install.packages("caret")         # For machine learning algorithms and evaluation
install.packages("caTools")       # For splitting the dataset into train/test
install.packages("e1071")         # For SVM models and performance metrics

# Load the installed libraries
library(tidyverse)   # Load tidyverse for data handling and plotting
library(caret)       # Load caret for model training and evaluation
library(caTools)     # Load caTools for splitting data
library(e1071)       # Load e1071 for classification tools like confusion matrix

The above code installs and loads the essential libraries required for the Diabetes Prediction Analysis Project. The output confirms that the libraries are installed and loaded correctly.

Check this R project: Loan Approval Classification Using Logistic Regression in R

Step 3 – Loading the Dataset

In this step, we will load the diabetes dataset directly from the path where it was uploaded in your Colab environment. After loading the data into a variable, the first few rows are displayed to get a look at the structure and values in the dataset. The code for this step is:

# Load the dataset directly from the uploaded path
data <- read.csv("diabetes prediction dataset.csv")

# View the first few rows of the dataset
head(data)  # Displays the top rows to understand the structure

The above code loads the dataset and also gives us a glimpse of the dataset we’re working with:

Here’s an R project for you:  Player Performance Analysis & Prediction Using R

Step 4 – Exploring the Dataset

This step helps us understand the dataset’s structure, types of variables, and whether there are any missing values. A statistical summary of each column is also generated to give an overview of the data distribution. Here’s the code to explore the dataset:

# Check structure of the dataset
str(data)  # Shows data types and column structure

# Check if there are any missing values
colSums(is.na(data))  # Summarizes missing values per column

# Summary statistics
summary(data)  # Gives min, max, mean, and quartiles for each column

The above code gives us a summary of the dataset for us to understand it better.

Step 5 – Data Preprocessing: Cleaning and Formatting

In this section, we begin preparing the dataset for modeling. We reconfirm the structure and check for missing values. We also convert the target column diabetes into a factor to make it suitable for classification algorithms and examine the class distribution.

# View dataset structure
str(data)  # Displays column names, data types, and sample data

# Check for missing values
colSums(is.na(data))  # Shows count of NA values per column

# Summary statistics
summary(data)  # Provides descriptive statistics for numeric columns

# Convert the target column 'diabetes' to factor
data$diabetes <- as.factor(data$diabetes)  # Ensures classification algorithms treat it as categorical

# Check class balance
table(data$diabetes)  # Displays the count of each class (0 = No, 1 = Yes)

The above code checks for missing values and converts the diabetes target column for further classification steps.

Read More: Spotify Music Data Analysis Project in R

Step 6 – Split the Dataset into Training and Testing Sets

Before building our prediction model, we divide the dataset into two parts: training data (used to build the model) and testing data (used to evaluate it). This will ensure we can validate how well the model performs on unseen data. The code for this step is:

# Load library for splitting
library(caTools)  # Used for creating a random split of the dataset

# Set seed so results are reproducible
set.seed(123)  # Ensures you get the same split each time you run it

# Split the data: 80% training, 20% testing
split <- sample.split(data$diabetes, SplitRatio = 0.8)

train_data <- subset(data, split == TRUE)  # Training dataset
test_data  <- subset(data, split == FALSE) # Testing dataset

# Check sizes of train and test sets
nrow(train_data)  # Number of rows in training set
nrow(test_data)   # Number of rows in testing set

The output shows the number of data it is trained on and the number of data it will test the model on.

Step 7 – Train a Logistic Regression Model

We will now build our first prediction model using logistic regression, which is ideal for binary classification tasks like predicting diabetes (Yes/No). We'll train it on the training dataset using all available features.

# Train the logistic regression model
model <- glm(diabetes ~ ., data = train_data, family = "binomial")  # Fit the model on training data

# See the summary of the model
summary(model)  # Displays coefficients, significance levels, and performance stats

The output for the above step is:

The above output implies that:

• Important Features: Age, BMI, blood sugar, and HbA1c level are strong predictors of diabetes.
• Effect Direction: Higher values of age, BMI, HbA1c, and glucose increase diabetes risk.
• Model Fit: The model explains the data much better than using no predictors.
• Not All Features Help: Some features (like genderOther) don’t affect the result much.

Some R projects you can try: Forest Fire Project Using R - A Step-by-Step Guide | Movie Rating Analysis Project in R

Step 8 – Make Predictions on the Test Data

In this step, we will use the trained logistic regression model to predict the probability of diabetes for each test case. Then, we will convert those probabilities into binary classes (0 or 1) using a threshold of 0.5.

# Predict probabilities on the test set
pred_prob <- predict(model, newdata = test_data, type = "response")  # Get predicted probabilities

# Convert probabilities to binary predictions (threshold = 0.5)
pred_class <- ifelse(pred_prob > 0.5, 1, 0)  # Assign class labels based on threshold
pred_class <- as.factor(pred_class)         # Convert to factor for evaluation

Step 9 – Evaluate Model Accuracy Using Confusion Matrix

Now we will evaluate how well our model performed on the test set. We’ll compare the predicted values against the actual ones using a confusion matrix to get metrics like accuracy, sensitivity, and specificity. Here’s the code:

# Load caret package for evaluation
library(caret)

# Convert actual values to factor to match prediction format
actual_class <- as.factor(test_data$diabetes)

# Generate confusion matrix
confusionMatrix(pred_class, actual_class)

The output for the above code is:

The above output shows that:

• High Overall Accuracy: The model correctly predicted 95.97% of the cases. This is a strong overall performance.
• Sensitivity is Excellent (0.9911): It correctly identified almost all actual negative cases (class 0).
• Specificity is Moderate (0.6218): It’s less effective at identifying actual positive cases (class 1).
• Kappa Score (0.70): Shows good agreement between predicted and actual labels, beyond random chance.

Must Read: Natural Disaster Prediction Analysis Project in R

Step 10 – Visualize the Relationship Between Glucose, BMI, and Diabetes

To explore how blood glucose level and BMI relate to diabetes, we'll use a scatter plot. By coloring points by diabetes status, we can visually observe how individuals with and without diabetes cluster based on these health metrics. Here’s the code:

# Load ggplot2 (comes with tidyverse)
library(ggplot2)

# Glucose vs BMI plot colored by diabetes
ggplot(data, aes(x = blood_glucose_level, y = bmi, color = diabetes)) +
  geom_point(alpha = 0.5) +
  labs(title = "BMI vs Blood Glucose Level by Diabetes Status",
       x = "Blood Glucose Level",
       y = "BMI") +
  theme_minimal()

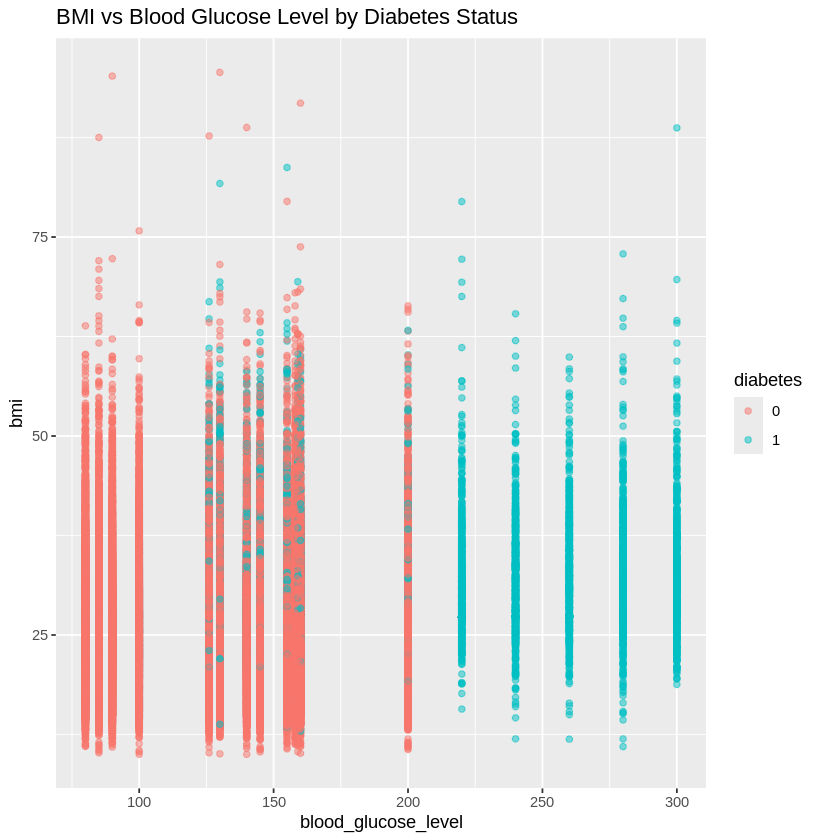

The above code gives us a graphical representation of the BMI vs Blood Glucose levels by diabetes status.

The above graph shows that:

• Higher Glucose, Higher Diabetes Risk:
  Most people with high blood glucose levels (200+) are labeled with diabetes (1, shown in blue).
• Low Glucose, Mostly No Diabetes:
  People with lower glucose levels (below ~150) are mostly non-diabetic (0, shown in red).
• BMI is Spread Out:
  BMI doesn't clearly separate diabetics and non-diabetics. People from both groups have a wide range of BMI values.

Step 11 – Build the Random Forest Model for Diabetes Prediction

To improve accuracy and handle complex relationships in the data, we’ll now use the Random Forest algorithm. This method combines multiple decision trees to reduce overfitting and improve prediction performance. Here’s the code:

# Install randomForest package (only once)
install.packages("randomForest")

# Load the package
library(randomForest)

The output confirms the installation and loading of the Random Forest package.

Read This: How to Build an Uber Data Analysis Project in R

Step 12 – Train the Random Forest Model on the Training Data

Now that the package is installed and loaded, we can train the Random Forest model. We'll use the randomForest() function and specify the number of trees to grow (ntree). Setting a seed ensures reproducibility of results. Here’s the code to train the model:

# Train the random forest model
set.seed(123)  # For reproducibility

rf_model <- randomForest(diabetes ~ ., data = train_data, ntree = 100)

# View the model summary
print(rf_model)

The output of the above code is:

The above output means that:

• Model Accuracy: The Out-of-Bag (OOB) error rate is 2.82%, meaning the model predicts correctly about 97.18% of the time on unseen training samples.
• Class 0 Accuracy: The model performs very well on class 0 (non-diabetic), with a very low error rate of 0.046%.
• Class 1 Accuracy: The model struggles more with class 1 (diabetic), with a 32.7% error rate, meaning it often misclassifies diabetic cases.

Here’s a Fun R Project:  Car Data Analysis Project Using R

Step 13 – Make Predictions Using the Random Forest Model

Once the Random Forest model is trained, the next step is to use it for predicting diabetes on unseen test data. We'll use the predict() function to generate predictions and preview the first few results. Here’s the code:

# Predict on the test data
rf_pred <- predict(rf_model, newdata = test_data)

# View prediction results
head(rf_pred)

The output for this step is:

This means that:
The “Levels: '0' '1'” confirms the prediction output is a factor with two levels:

• '0' (no diabetes)
• '1' (diabetes)

Step 14 – Evaluate Model Performance Using a Confusion Matrix

To measure how well our Random Forest model performed on unseen data, we use a confusion matrix. This will show us how many instances were correctly or incorrectly classified into diabetic (1) and non-diabetic (0) categories. Here’s the code:

# Evaluate predictions using confusion matrix
confusionMatrix(rf_pred, as.factor(test_data$diabetes))

The above code gives us the output:

The above output shows that:

• High Accuracy: The model correctly predicted 97.21% of the cases overall.
• Sensitivity (0.9998): It identified almost all non-diabetic cases (class 0) correctly.
• Specificity (0.6741): It was less accurate in detecting diabetic cases (class 1), missing some.
• Kappa (0.7898): Indicates strong agreement between predicted and actual outcomes, beyond random chance.
• Balanced Accuracy (0.8369): Provides a fair performance score by averaging sensitivity and specificity.

You Can Also Build This R Project: Wine Quality Prediction Project in R

Step 15 – Compare Model Accuracies – Logistic Regression vs Random Forest

After building and testing both models, it’s important to compare their prediction accuracies to determine which performs better on the test data. Here’s the code to compare both models.

# Logistic Regression Accuracy
log_accuracy <- mean(pred_class == test_data$diabetes)

# Random Forest Accuracy
rf_accuracy <- mean(rf_pred == test_data$diabetes)

# Print both
cat("Logistic Regression Accuracy:", round(log_accuracy * 100, 2), "%\n")
cat("Random Forest Accuracy:", round(rf_accuracy * 100, 2), "%\n")

The output for this gives us the comparison of both models’ performance:

This shows that the Random Forest model achieved higher accuracy in diabetes prediction using the given dataset.

Conclusion

In this Diabetes Prediction project, we used R in Google Colab to build and compare two models: Logistic Regression and Random Forest.

After preprocessing the dataset, we split it into training and testing sets, then trained both models to classify individuals as diabetic or not.

Evaluation was done using accuracy scores and confusion matrices. The Random Forest model outperformed Logistic Regression, achieving a higher accuracy of 97.21% compared to 77.15%.
