What is DBSCAN Clustering? Key Concepts, Implementation & Applications

Did you know? DBSCAN was invented in 1996 by Martin Ester, Hans-Peter Kriegel, Jörg Sander, and Xiaowei Xu out of frustration with existing clustering algorithms that forced data into neat, spherical groups.

It was one of the first algorithms to find clusters of arbitrary shape and handle noisy data successfully!

DBSCAN clustering is a powerful algorithm that groups data points based on their density. Unlike traditional methods, it can detect clusters of any shape and identify outliers. However, finding the right parameters like epsilon and MinPts can be tricky.

In this tutorial, you’ll look at the key concepts behind DBSCAN clustering, show you how to implement it, and explore real-life applications.

Improve your machine learning skills with upGrad’s online AI and ML courses. Specialize in cybersecurity, full-stack development, game development, and much more. Take the next step in your learning journey!

What is DBSCAN? Key Concepts and Hyperparameters

DBSCAN (Density-Based Spatial Clustering of Applications with Noise) is a machine learning clustering algorithm that groups data points based on their density in a dataset. It identifies clusters of varying shapes and sizes by evaluating the number of points within a given radius.

Working with DBSCAN clustering algorithm involves more than just applying the algorithm. To get meaningful results, you must focus on data preprocessing, fine-tuning hyperparameters, and accurately interpreting the clusters. Here are three programs that can help you sharpen these skills:

• Executive Diploma in Data Science & AI with IIIT-B
• Executive Diploma in Machine Learning and AI with IIIT-B
• Executive Post Graduate Certificate Programme in Data Science & AI

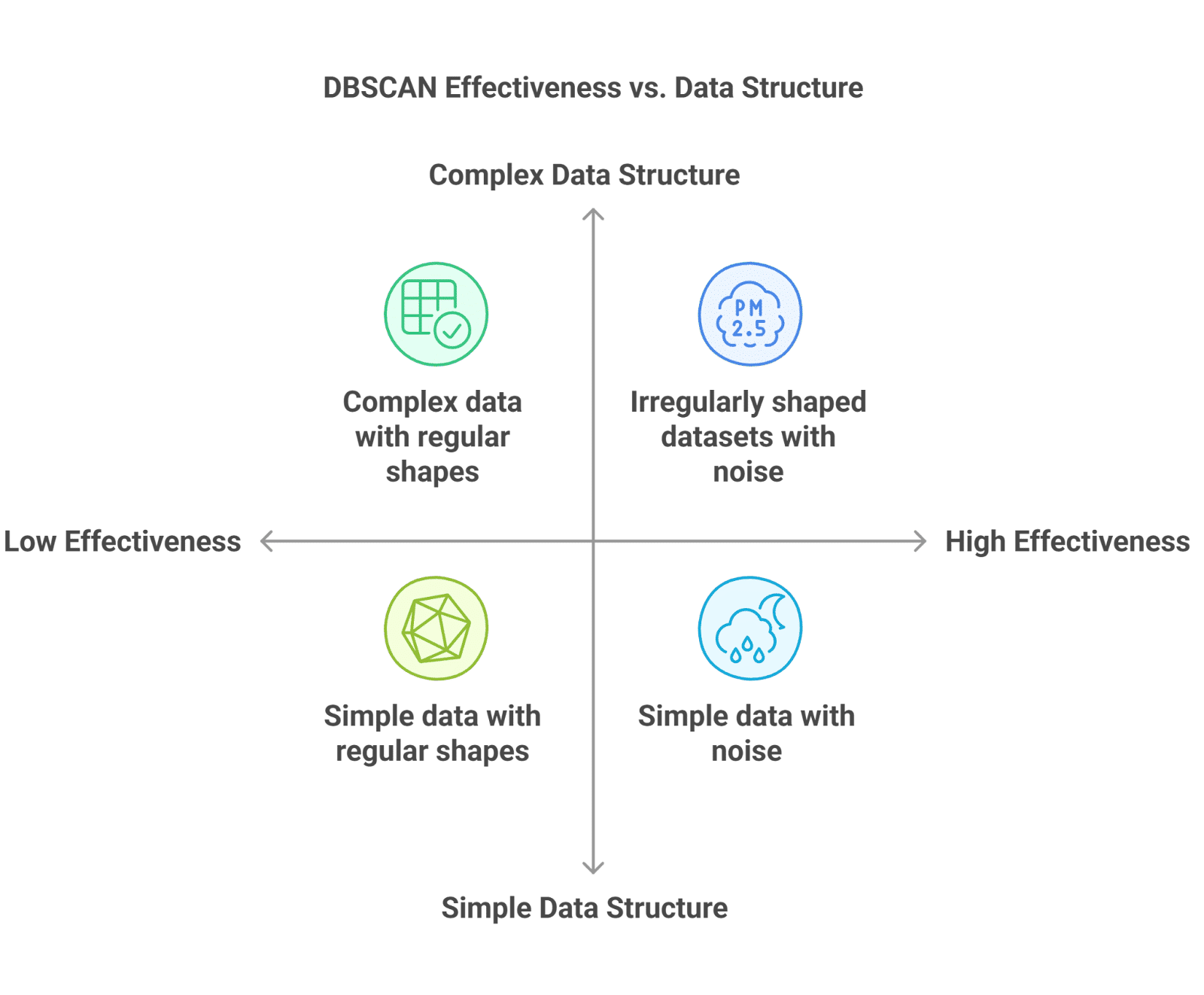

DBSCAN’s ability to handle complex clustering scenarios sets it apart from other algorithms. Here are some key features that make DBSCAN highly effective for certain types of data:

• Outlier Detection: DBSCAN in machine learning automatically identifies and labels noise points as outliers, eliminating the need for additional preprocessing or filtering. It labels points as noise (-1) when they fail to meet the density criteria defined by ε (epsilon) and MinPts, not simply because they are outliers in the traditional sense.
• No Predefined Clusters: Unlike algorithms like K-Means, DBSCAN doesn’t require you to specify the number of clusters, letting the data itself define the structure.
• Scalable: DBSCAN can efficiently handle large datasets by using spatial indexing techniques such as R-trees or KD-trees, which enhance performance in high-dimensional or geospatial data.
• Handles Variable Densities: DBSCAN can detect clusters of varying densities, making it ideal for real-world data where clusters may not be uniform in size.
• Flexible Distance Metrics: While DBSCAN typically uses Euclidean distance, it can also incorporate other distance metrics (e.g., Manhattan, cosine similarity) for different types of data like text or categorical variables.

Also Read: Anomaly Detection and Outlier Detection: Techniques, Tools & Use Cases

Understanding how DBSCAN handles different densities and the impact of distance metrics is key to tuning the algorithm for your specific data. For example, choosing the right distance metric for text data can enhance clustering, while adjusting for varying densities helps DBSCAN capture both dense and sparse clusters.

With this in mind, let's explore the key concepts that drive the clustering process.

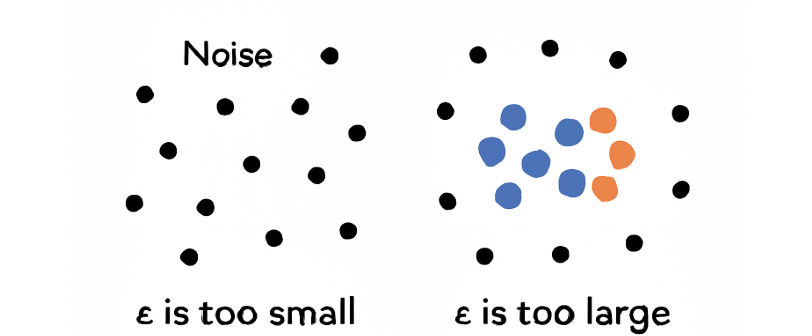

1. Epsilon (ε)

Epsilon, or ε, is the maximum distance between two points for them to be considered neighbors. This parameter is critical because it defines the neighborhood size. The choice of ε directly affects the size and number of clusters that DBSCAN identifies.

• If ε is too small, most points might not have enough neighbors to form a cluster, leading to many points being labeled as noise.
• If ε is too large, DBSCAN might merge distinct clusters into one large cluster.

For example, in a customer segmentation dataset, a small ε might group only customers in close geographic proximity, while a larger ε could group customers from wider areas, potentially blurring distinct customer behaviors.

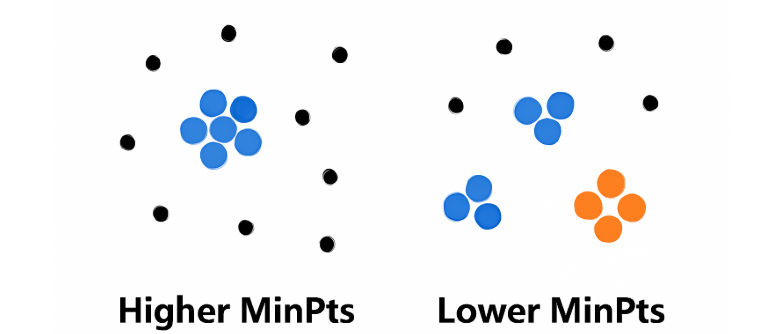

2. MinPts

MinPts is the minimum number of points required to form a cluster. Essentially, it determines the density threshold for clusters.

• A higher MinPts value means that DBSCAN will only form clusters where points are densely packed.
• Lower values for MinPts can result in smaller clusters.
• The challenge with MinPts is finding the right balance: too high a value might lead to fewer clusters, while too low could group too many points together, making the clusters less meaningful.

For instance, in a retail data analysis, setting MinPts to 5 means that at least five customers in the same region must exhibit similar purchasing patterns to form a valid cluster.

3. Core Points

Core points are the backbone of DBSCAN's clustering process. A core point is a point that has at least MinPts points within its ε neighborhood.

• These points are the center of a cluster, and they have a high density of surrounding points.
• Core points are critical for DBSCAN because they define the density of the cluster.

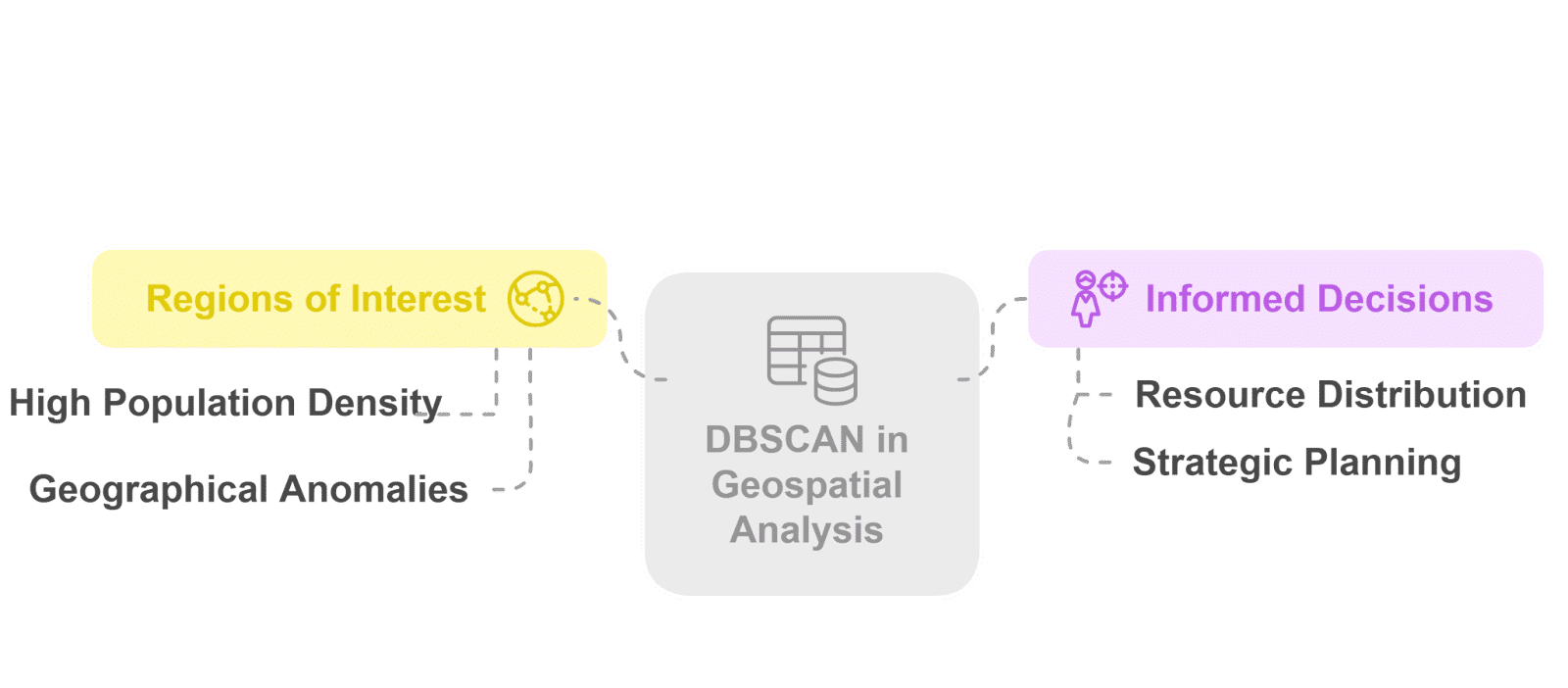

When applying DBSCAN to a dataset like geospatial data of homes, a core point could represent a densely populated area, such as a neighborhood with numerous houses. Clusters are formed around these core points, with other points being added based on proximity.

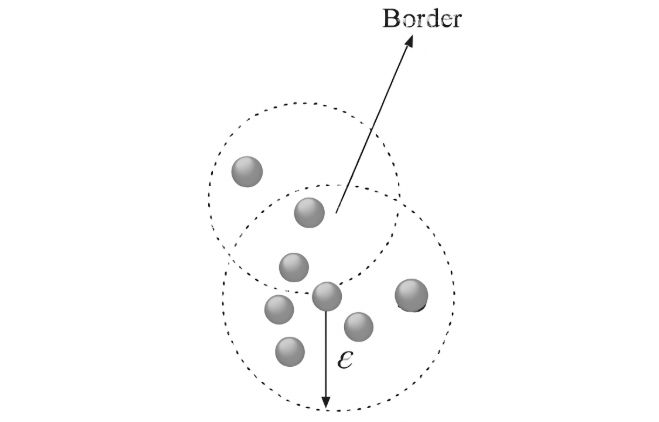

4. Border Points

Border points lie within the ε neighborhood of a core point but do not have enough neighbors to be considered core points themselves. They are essentially "members" of the cluster but don't have the same density based clustering as core points. Border points help fill out clusters, connecting areas of high density.

In customer segmentation, a border point might represent a customer who visits a specific store less frequently than core customers but still makes purchases. Though not as densely packed, these customers are still part of the overall customer cluster.

5. Noise Points

Noise points are the outliers of the dataset, points that do not meet the criteria to be classified as either core or border points.

• These points do not have enough neighboring points to form a cluster and are labeled as noise.
• Noise is useful in DBSCAN because it can identify rare or unusual data points that don’t fit the general trend.

For example, in fraud detection, DBSCAN might flag a single transaction as noise if it doesn’t follow the usual purchasing patterns of a particular user, helping to identify potential fraudulent activities.

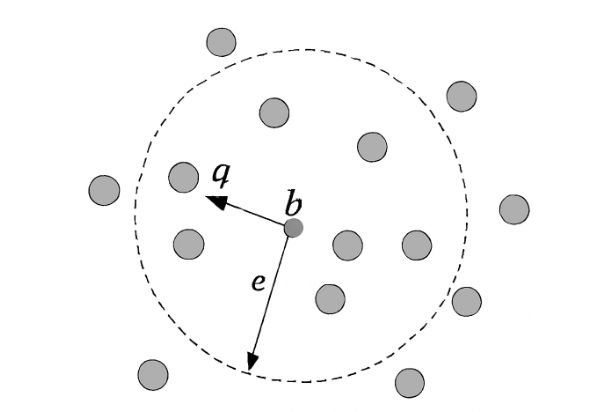

6. Density Reachability

Density reachability is a key concept in DBSCAN that helps determine whether one point is part of a cluster.

• Point A is considered density-reachable from point B if point A is within the ε radius of point B, and point B is a core point.
• Essentially, this means that point A is part of the same dense region as point B, and thus, part of the cluster.
• This relationship is particularly useful in cases where clusters are not circular but can be arbitrary shapes.

In a mobile phone user dataset, if user A is close enough to core user B, they are considered part of the same social group or network.

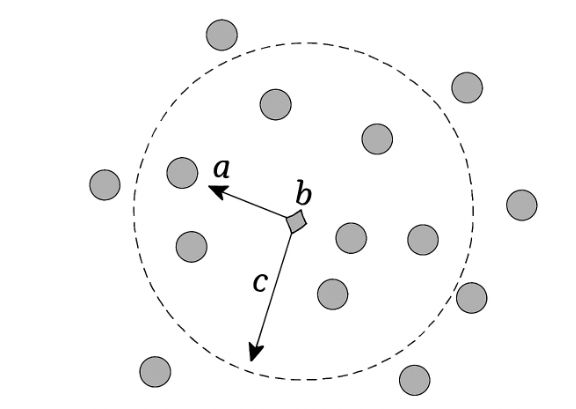

7. Density Connectivity

Density connectivity extends the concept of density reachability. It means that two points, A and B, are density-connected if there exists a third point, C, that is a core point and density-reachable from both A and B.

• In simple terms, if there’s a core point that connects two non-core points, those two points are considered part of the same cluster, even if they are not directly connected.
• In social network analysis, this could represent two users who aren’t directly connected but share a common network of friends.

This feature ensures that DBSCAN can identify clusters even when points aren’t directly connected but share a mutual link through core points.

8. Distance Metric

DBSCAN primarily uses Euclidean distance to measure the similarity between points. However, depending on the dataset, DBSCAN can also incorporate other distance metrics, such as Manhattan distance, cosine similarity, or custom metrics.

• For example, in text clustering, cosine similarity is more effective as it measures the similarity of text documents based on word frequency.
• In contrast, Euclidean distance works well for spatial data, where proximity matters, such as in clustering geographic locations of businesses.

The choice of distance metric is important because it directly affects the outcome of the clustering, especially when working with non-numerical or categorical data.

Also Read: Introduction to Classification Algorithm: Concepts & Various Types

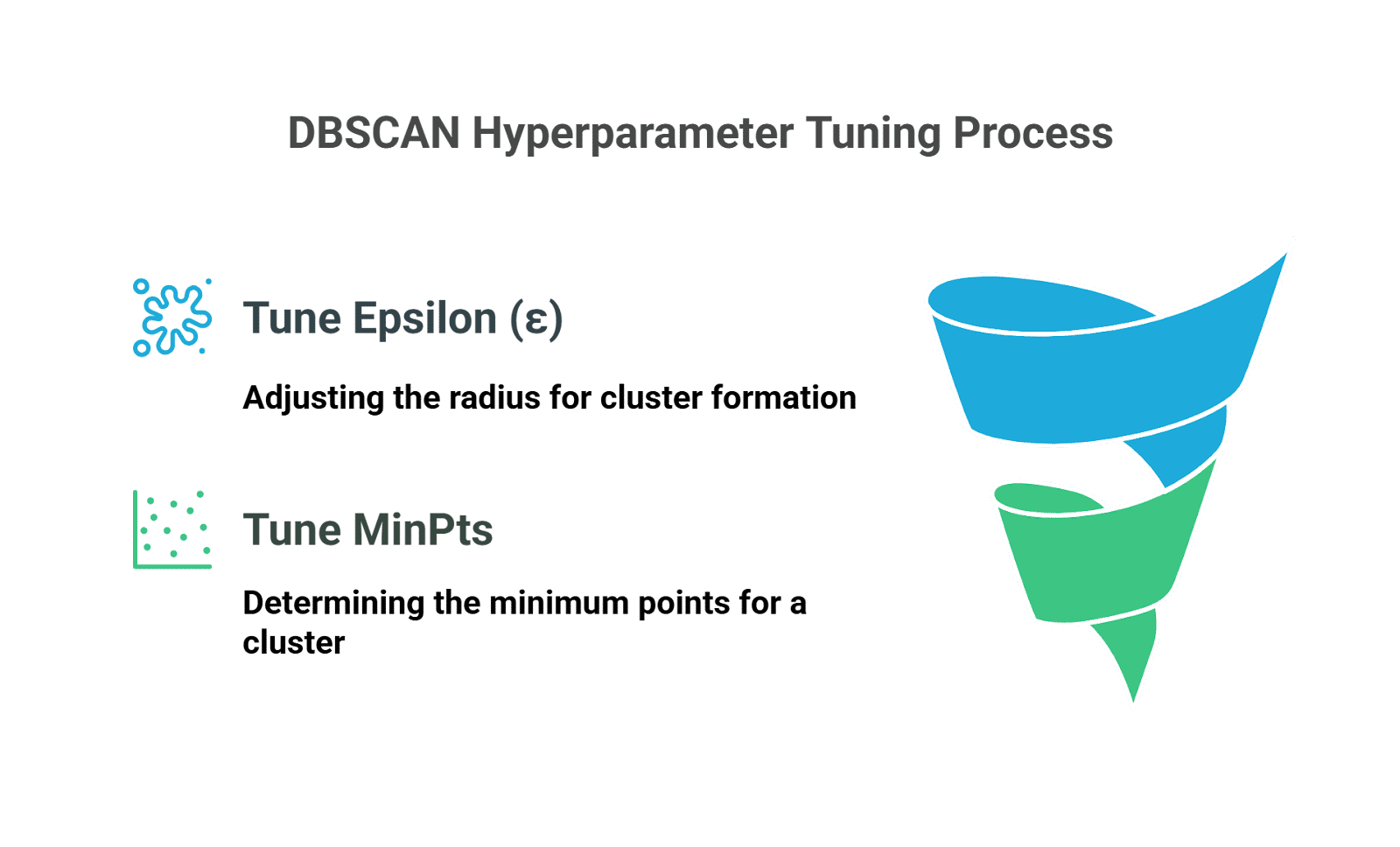

Now that we’ve covered the key concepts of DBSCAN, let's focus on tuning these hyperparameters (ε and MinPts) for optimal performance.

Tuning these values is essential because the results DBSCAN produces depend heavily on the chosen parameters. Incorrect tuning can lead to either too many small, irrelevant clusters or large, meaningless ones.

Tuning Epsilon (ε)

• Use k-distance Graph: Plot the distance of each point to its k-th nearest neighbor (usually k = MinPts). The "elbow" of the graph indicates a good choice for ε, where the distance begins to rise sharply.
  For example, in a dataset of customer locations, look for the point where distances jump, signaling the appropriate neighborhood size.
• Adjust Based on Data Density: ε should be large enough to include points that belong to the same cluster but small enough to avoid merging different clusters. Experiment with different ε values to see how it impacts clustering.
• Visualize Results: After setting ε, visualize the clusters to ensure the neighborhood size captures meaningful groupings without merging unrelated clusters.

Tuning MinPts

• Start with a Default Value: A common rule of thumb is setting MinPts to the dimensionality of the dataset plus one (MinPts = D + 1, where D is the number of dimensions). This provides a good starting point.
• Increase for Denser Clusters: If your dataset has highly dense clusters, increase MinPts to ensure DBSCAN only forms valid, significant clusters.
• Decrease for Sparse Clusters: If the data has sparse clusters, reduce MinPts to allow for smaller groups of points to form clusters.
• Test Different Values: Test various MinPts values by visualizing clustering outcomes. Too high or too low may either result in too few clusters or excessive fragmentation.

General Tips for Tuning

• Balance Between ε and MinPts: The best clusters often result from fine-tuning both ε and MinPts together. If ε is too large, MinPts may need to be adjusted, and vice versa.
• Cluster Validation: Use cluster validation techniques (e.g., silhouette score) to quantitatively assess the quality of your clustering, ensuring you don’t overfit or underfit the model.
• Cross-Validation: If available, cross-validation can help test the sensitivity of DBSCAN to hyperparameter changes on different subsets of the dataset, improving robustness.

Also Read: What is Cluster Analysis in Data Mining? Methods, Benefits, and More

To optimize your DBSCAN results, start by experimenting with ε and MinPts values while keeping the dataset's density based clustering in mind. Use tools like k-distance graphs and cluster validation metrics to guide your choices. With some trial and error, you’ll refine the settings to capture meaningful clusters in your data best.

Now, let's move on to implementing DBSCAN in Python and see how these concepts come together in practice.

How to Implement DBSCAN Clustering in Machine Learning?

Many clustering algorithms, like K-Means, require you to specify the number of clusters, which can be difficult if the data has irregular shapes or noise. DBSCAN solves this by automatically identifying clusters based on density based methods in data mining, making it perfect for datasets where clusters aren't clearly defined.

Let’s dive into the step-by-step process of how DBSCAN works:

1. Initialize the Process

• Start by selecting an arbitrary point in the dataset.
• If the point has not been visited before, mark it as visited.

2. Check the Neighborhood

• For the selected point, calculate its ε-neighborhood (points within distance ε).
• Count how many points fall within this ε-neighborhood.

3. Classify Points

• Core Point: If the point has at least MinPts neighbors (including itself) within its ε-neighborhood, it is considered a core point and will initiate a cluster.
• Border Point: If the point has fewer than MinPts neighbors but lies within the ε-neighborhood of a core point, it’s classified as a border point and added to the cluster of the core point.
• Noise Point: If the point has fewer than MinPts neighbors and isn’t within the ε-neighborhood of any core point, it’s classified as noise and left unassigned.

4. Expand the Cluster

• If the point is a core point, start expanding the cluster.
• Add all points within its ε-neighborhood to the cluster.
• For each newly added point, repeat the process: if it's a core point, expand the cluster further by including its neighbors. This process continues until no more points can be added to the cluster.

5. Repeat for All Points

• Move on to the next unvisited point in the dataset.
• If the point is a core point, expand the cluster. If it's a border point, add it to the nearest core point’s cluster. If it’s a noise point, leave it unassigned.
• Continue this process for all points in the dataset.

6. Final Clusters and Noise Points

• Once all points have been visited, the algorithm terminates.
• All points that were added to clusters are now assigned to a cluster label.
• Points that were identified as noise remain unassigned, indicating they are outliers.

To get the most out of DBSCAN, experiment with different ε and MinPts values based on your dataset's density. Start by using a k-distance graph to help choose ε. Be prepared to adjust parameters as you explore the data, this is key for getting meaningful clusters. Visualize your results to check how well DBSCAN is identifying true patterns versus noise.

Also Read: 5 Steps to Building a Data Mining Model from Scratch

Now, let’s move into the implementation so you can apply these concepts in code and start clustering your own data.

Step 1: Install Required Libraries

First, make sure you have the necessary libraries installed. If you don't already have them, you can install them via pip.

pip install numpy pandas matplotlib scikit-learn

Step 2: Import Libraries

Now, let’s import the required libraries for the implementation:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.cluster import DBSCAN
from sklearn.preprocessing import StandardScaler

• numpy and pandas are for data manipulation.
• matplotlib.pyplot is for plotting and visualizing the clusters.
• DBSCAN from sklearn.cluster is the DBSCAN algorithm in data mining.
• StandardScaler is used to standardize the dataset, which is important for DBSCAN when using distance-based metrics.

Struggling with data manipulation and visualization? Check out upGrad’s free Learn Python Libraries: NumPy, Matplotlib & Pandas course. Gain the skills to handle complex datasets and create powerful visualizations. Start learning today!

Step 3: Prepare the Dataset

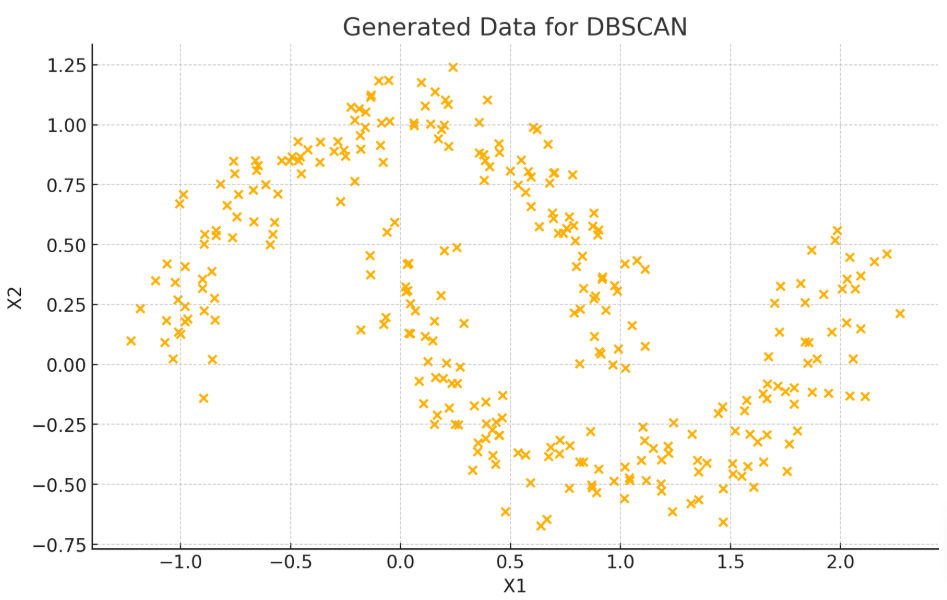

Let's create a simple dataset. We’ll generate some random data for clustering.

The make_moons dataset is ideal for demonstrating DBSCAN's ability to handle non-spherical clusters and distinguish it from algorithms like K-Means, which struggle with irregular shapes.

from sklearn.datasets import make_moons
# Generate a dataset
X, _ = make_moons(n_samples=300, noise=0.1, random_state=42)
# Visualize the dataset
plt.scatter(X[:, 0], X[:, 1], s=30)
plt.title('Generated Data for DBSCAN')
plt.xlabel('X1')

plt.ylabel('X2')
plt.show()

Output:

Explanation:

• We use make_moons from sklearn.datasets to generate a dataset with two interleaving half circles. This type of data is great for DBSCAN because it has irregular shapes.
• noise=0.1 adds some random noise to make it more realistic.

Step 4: Preprocessing (Standardization)

DBSCAN is sensitive to the scale of the data, so it’s important to standardize it.

# Standardize the data
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

Explanation:

• StandardScaler standardizes the data to have a mean of 0 and a standard deviation of 1. This ensures that features with larger scales do not dominate the clustering process.
• After standardization, DBSCAN will label points as part of clusters, or -1 for noise (outliers), helping identify data points that don't fit the density criteria.

Also Read: Data Preprocessing in Machine Learning: 7 Key Steps to Follow, Strategies, & Applications

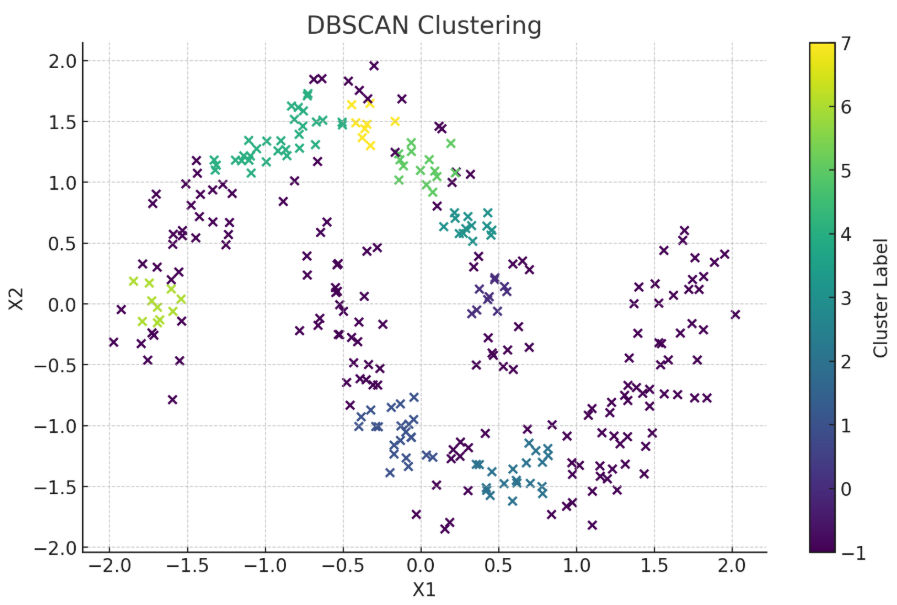

Step 5: Apply DBSCAN

Now, let’s apply the DBSCAN algorithm in data mining.

# Apply DBSCAN
db = DBSCAN(eps=0.2, min_samples=10)
labels = db.fit_predict(X_scaled)
# Visualize the clustering result
plt.scatter(X_scaled[:, 0], X_scaled[:, 1], c=labels, cmap='viridis', s=30)
plt.title('DBSCAN Clustering')
plt.xlabel('X1')
plt.ylabel('X2')
plt.colorbar(label='Cluster Label')
plt.show()

Output:

Explanation:

• DBSCAN(eps=0.2, min_samples=10):
  • eps controls the radius of the neighborhood around a point. Here, we set it to 0.2.
  • min_samples=10 means a point needs at least 10 neighbors within eps to be considered a core point.
• fit_predict(X_scaled) assigns a cluster label to each point. Points labeled -1 are considered noise.
• We use c=labels in plt.scatter to color the points by their cluster label.

Step 6: Analyze the Results

Let’s print the unique labels (clusters) assigned by DBSCAN.

print("Unique cluster labels:", np.unique(labels))

Output:

Unique cluster labels: [-1  0  1  2  3  4  5  6  7]

Explanation:

• DBSCAN will return labels for each point. -1 represents noise (outliers), and any other integer represents a cluster label.
• The result helps to understand how many clusters and noise points DBSCAN has identified.

Step 7: Edge Cases and Troubleshooting Tips

1. Too Few Clusters:

If DBSCAN is identifying too few clusters (or no clusters at all), it could be due to a very large eps or a very high min_samples. In such cases:

• Tip: Decrease eps to make the neighborhood smaller or decrease min_samples to allow smaller clusters.

1. Too Many Clusters (Over-clustering):

If DBSCAN identifies too many small clusters, the eps value might be too small.

• Tip: Increase eps to allow points to be grouped together.

1. Noise Points:

If too many points are labeled as noise (especially if they should be in clusters), adjust eps and min_samples. The smaller the eps, the more likely DBSCAN will treat points as noise.

• Tip: Try to visualize the data (if possible) to see if noise points are isolated or scattered across the dataset.

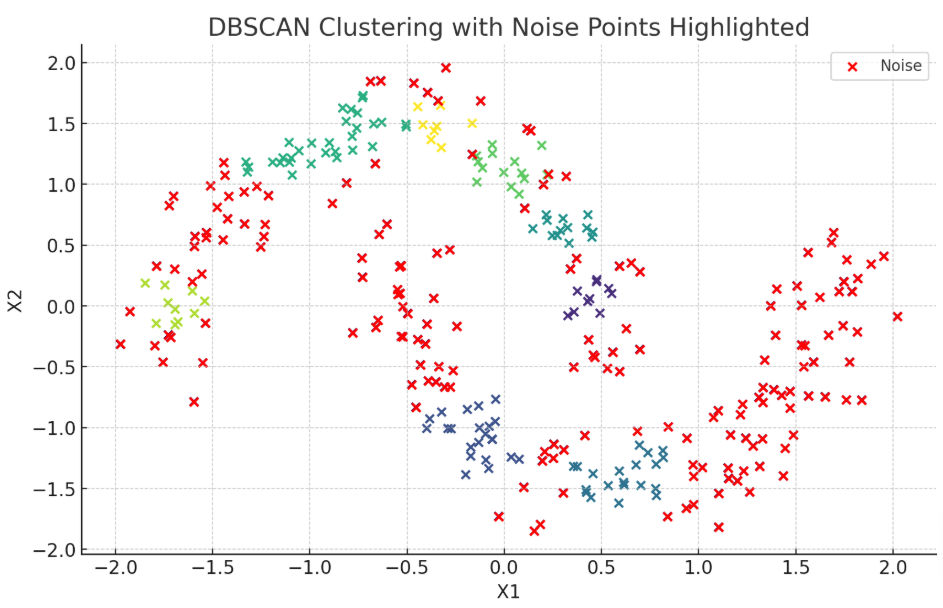

Step 8: Visualize Noise Points

To visualize noise points (points labeled as -1), we can highlight them:

# Extract points that are labeled as noise (-1)
noise_points = X_scaled[labels == -1]
# Plot with noise points highlighted
plt.scatter(X_scaled[:, 0], X_scaled[:, 1], c=labels, cmap='viridis', s=30)
plt.scatter(noise_points[:, 0], noise_points[:, 1], color='red', s=30, label='Noise')
plt.title('DBSCAN Clustering with Noise Points Highlighted')
plt.xlabel('X1')
plt.ylabel('X2')
plt.legend()
plt.show()

Output:

Explanation:

• Noise points are labeled as -1 by DBSCAN. We use labels == -1 to extract and highlight them in red.

For high-dimensional datasets, consider reducing the dimensions first using PCA to improve DBSCAN’s performance. When working with complex shapes, visualize your results frequently to check if the clusters make sense.

Also Read: Top 10 Dimensionality Reduction Techniques for Machine Learning(ML) in 2025

Lastly, if DBSCAN struggles, try combining it with other techniques like dimensionality reduction or preprocessing steps to enhance its clustering ability. Let’s look at a comparison between DBSCAN and other clustering algorithms.

Comparing DBSCAN to Other Clustering Algorithms

Understanding the strengths and limitations of each method is crucial, as no one-size-fits-all approach exists for clustering. DBSCAN is highly effective for datasets with irregular shapes and noise, but it might not always be the best option depending on your data’s structure.

By exploring how DBSCAN stacks up against other algorithms, you’ll know when to use it and when to consider alternatives.

Let’s look at the table below to highlight the differences clearly:

Also Read: Clustering vs Classification: What is Clustering & Classification

When selecting a clustering algorithm, focus on DBSCAN for datasets with noise or irregular cluster shapes. It’s less sensitive to outliers, but tuning ε and MinPts can be tricky. If you're dealing with large, high-dimensional datasets, consider the algorithm’s scalability and memory usage.

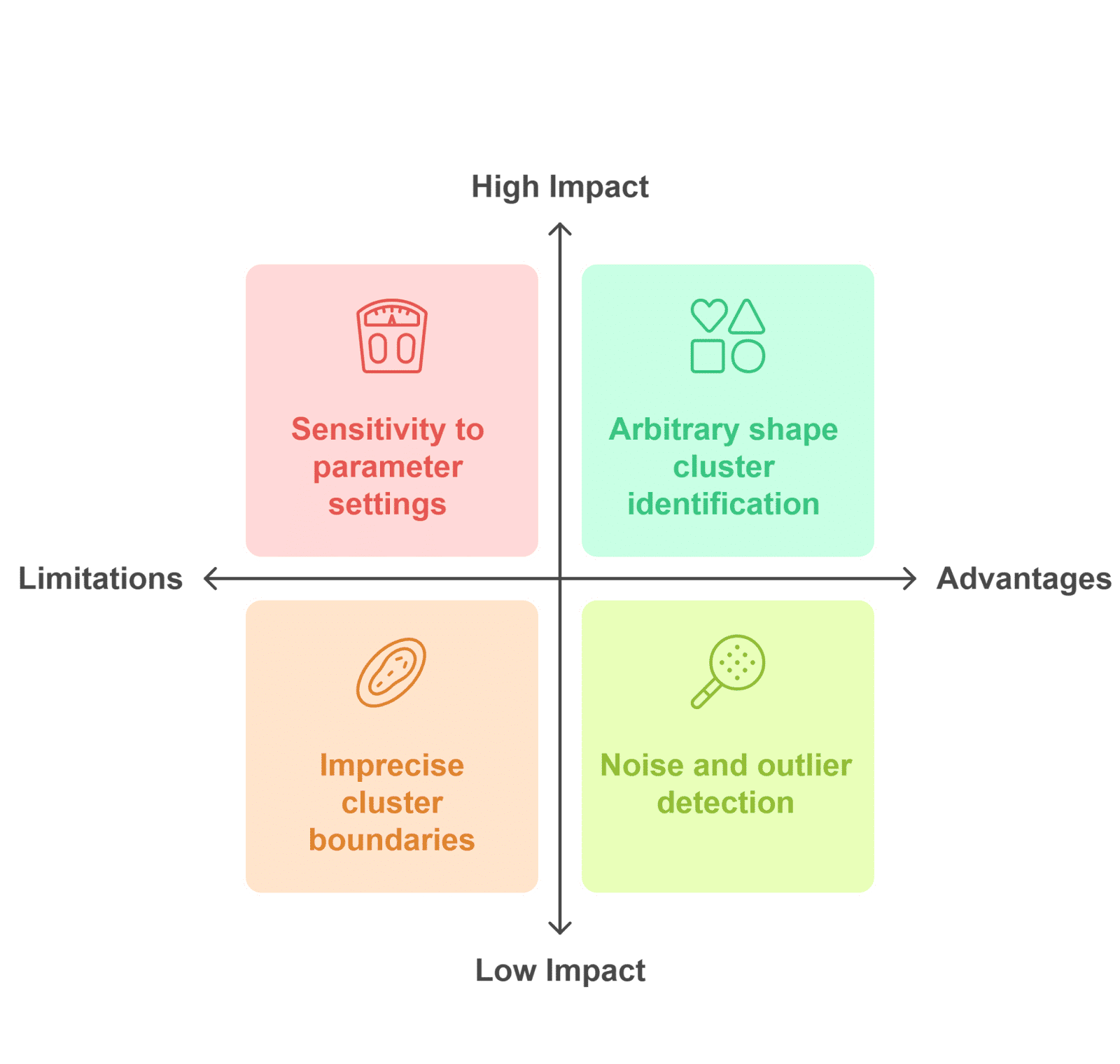

With that in mind, let's dive deeper into DBSCAN's advantages and limitations, so you can better understand when and where it excels.

Advantages and Limitations of DBSCAN in Data Mining

Understanding the advantages and limitations of DBSCAN in data mining is important for making informed decisions about its application in data mining tasks. For instance, DBSCAN’s ability to handle noise and irregularly shaped clusters is valuable for certain use cases, but it might struggle with datasets that have varying densities or are very large.

Here’s a detailed table of DBSCAN’s advantages and limitations.

Also Read: Machine Learning Projects with Source Code in 2025

Start with smaller datasets to test different distance metrics and see how the algorithm adapts. If computational speed is a concern, consider parallelizing the algorithm or using optimized libraries. For noisy datasets, refine the noise handling by adjusting MinPts.

Now, let's dive into the real-life applications of DBSCAN in data mining, where it shines in practical scenarios.

Real-Life Applications of DBSCAN Clustering in Machine Learning

Clustering techniques, particularly DBSCAN, are crucial for addressing a wide range of real-world challenges. For instance, DBSCAN is widely used in geospatial analysis to identify regions of interest, such as clustering areas with high population density or detecting geographical anomalies. This approach helps in making informed decisions, such as optimizing resource distribution.

Below is a table summarizing how DBSCAN is used in various real-life scenarios:

For advanced projects, try using DBSCAN for clustering satellite imagery, analyzing large-scale social network data, or detecting fraud in financial transactions. These projects will challenge you to optimize DBSCAN for large, noisy datasets.

For next-level topics, explore clustering with deep neural networks, using DBSCAN for time series data, or applying DBSCAN in reinforcement learning for anomaly detection.

Now that you’ve gained insights into DBSCAN clustering, take your skills further with the Executive Programme in Generative AI for Leaders by upGrad. This program offers advanced training on clustering techniques and machine learning strategies, preparing you to drive innovation and apply it in complex data mining scenarios.

Test Your Knowledge on DBSCAN Clustering!

Assess your understanding of DBSCAN clustering, its key concepts, advantages, limitations, and real-life applications by answering the following multiple-choice questions.

Test your knowledge now!

Q1. What is the primary purpose of DBSCAN clustering?

A) To divide data into equal-sized groups
B) To find clusters of arbitrary shapes and detect noise
C) To classify data based on pre-defined labels
D) To calculate the mean of all data points

Q2. Which parameter in DBSCAN determines the radius for neighborhood points?

A) MinPts
B) Epsilon (ε)
C) K
D) Sigma

Q3. What does DBSCAN do with points that are classified as noise?

A) Assigns them to the nearest cluster
B) Ignored completely during clustering
C) Labels them as -1 (outliers)
D) Groups them into their own cluster

Q4. Which of the following is a limitation of DBSCAN?

A) Works well only with spherical clusters
B) Struggles with varying density clusters
C) Requires specifying the number of clusters in advance
D) Cannot handle noise

Q5. How does DBSCAN handle clusters with varying densities?

A) It clusters them equally regardless of density
B) It uses hierarchical clustering to adjust density levels
C) It performs poorly with varying densities
D) It requires manual adjustments for each density group

Q6. What would happen if DBSCAN’s ε parameter is set too high?

A) More points will be labeled as noise
B) Clusters will be merged together
C) Fewer points will be assigned to any cluster
D) The algorithm will fail to run

Q7. How does DBSCAN differ from K-Means clustering?

A) DBSCAN requires specifying the number of clusters in advance
B) DBSCAN doesn’t work with high-dimensional data
C) DBSCAN can find clusters of arbitrary shapes, unlike K-Means
D) K-Means automatically detects noise in data

Q8. Which of the following distance metrics can DBSCAN use?

A) Only Euclidean distance
B) Only Manhattan distance
C) Any distance metric, like cosine or Minkowski
D) DBSCAN doesn’t use distance metrics

Q9. When should DBSCAN be used over K-Means?

A) When the number of clusters is known in advance
B) When the data has irregular shapes and noise
C) When the data is always well-separated
D) When data is high-dimensional and sparse

Q10. What is one common way to determine the optimal value for DBSCAN’s ε?

A) Use a k-distance graph to find the "elbow" point
B) Apply hierarchical clustering first
C) Randomly choose a value and iterate
D) Use the standard deviation of the dataset

You can further enhance your skills in clustering and unsupervised learning with upGrad, which will help you deepen your understanding of DBSCAN clustering algorithm and its real-life applications in data mining.

Become an Expert at DBSCAN Clustering with upGrad!

To learn DBSCAN clustering algorithm and its applications, start by understanding the fundamentals of unsupervised learning, density based clustering algorithms, and data preprocessing. Many learners struggle with applying these techniques to real-life datasets.

Trusted by data professionals, upGrad offers courses that guide you through using DBSCAN for practical tasks like anomaly detection and pattern recognition, helping you build effective clustering models for complex data.

In addition to the courses mentioned, here are some more resources to help you further elevate your skills:

• Artificial Intelligence in the Real World
• Learn Basic Python Programming
• Fundamentals of Deep Learning and Neural Networks

Not sure where to go next in your ML journey? upGrad’s personalized career guidance can help you explore the right learning path based on your goals. You can also visit your nearest upGrad center and start hands-on training today!

Similar Reads:

• Bagging in Machine Learning: Overview, Steps, Benefits & Applications
• Cost Function In Machine Learning
• Image Annotation in Machine Learning
• Mahalanobis Distance: Formula, Python Code, Applications & Best Practices
• Support Vector Machine Svm For Anomaly Detection
• Isolation Forest Algorithm for Anomaly Detection
• Exponential Smoothing Method in Forecasting: Techniques and Applications

Discover popular AI and ML blogs and free courses to deepen your expertise. Explore the programs below to find your perfect fit.

Popular AI and ML Blogs & Free Courses

Discover in-demand Machine Learning skills to expand your expertise. Explore the programs below to find the perfect fit for your goals.

In-demand Machine Learning Skills

Expand your expertise with the best resources available. Browse the programs below to find your ideal fit in Best Machine Learning and AI Courses Online.

Best Machine Learning and AI Courses Online
